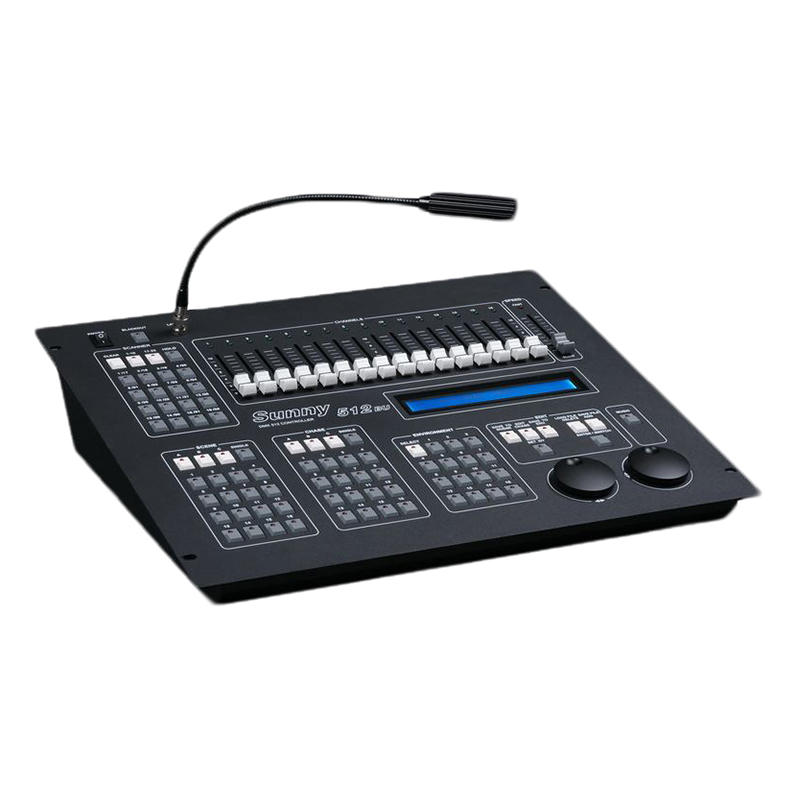

Control System_SUNNY-512
Brand
STSLITE
Factory Price
Negotiate
Supply Ability
200,00 Piece/Pieces per Month
Port
Guangzhou
Payment Terms
Cash Westnm Union T/T
Min.Order Quantity
1 PC
ODM & OEM
Availabie
Certification
CE/FCC

Control System_SUNNY-512





Parameters
Details


Optional accessories







Features

1: DMX512 standard. 512 DMX control channels;
2: Two independent output driver ports with isolation, capable of withstanding 1500VDC electrical shock. Independent plug-in board structure, easy to replace;
3: Can control 32 sets of 16 channel computer lights;
4: Large screen LCD display with backlight, used to display various operating parameters;
5: 16 channel push rods, 1 speed control push rod;
6: 1600 light walking program steps storage capacity. 48 lighting programs, with a maximum of 100 steps per program. Each step speed and gradient parameter are independently set. Optional music synchronization or manual speed control;
7: With the cooperation of the walking speed push rod, the time range of program steps can be from 0.03s-180s;
8: 48 directly callable computer lighting scenes;
9: It can run 4 lighting programs and 48 scenarios simultaneously, and can manually operate 32 computer lights at the same time (lantern lifting). Manual operation (lantern lifting) has channel release function;
10: The X/Y of different types of computer lights are controlled uniformly by the data wheel or by the pusher;
11: 15 environment keys for quick access to different scenarios, lighting, and manual operation combinations;
12: Shut down and save data;
13: Voltage: AC220V, 50-60Hz; Built in high-performance green switching power supply, with extremely low power harmonic distortion and wide voltage range, meeting global power requirements (90V-240V).
14: Dimensions: 565 × 400 × 175mm; Gross weight: 8kg.
