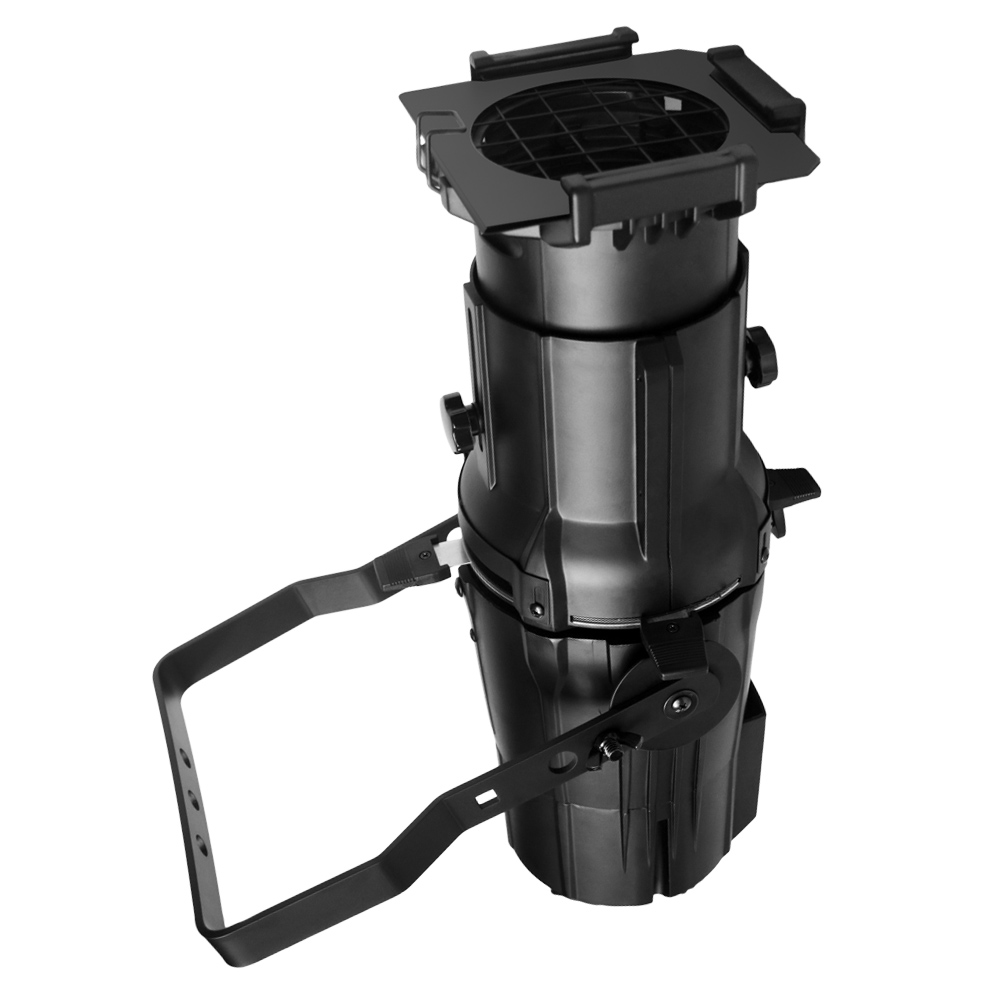

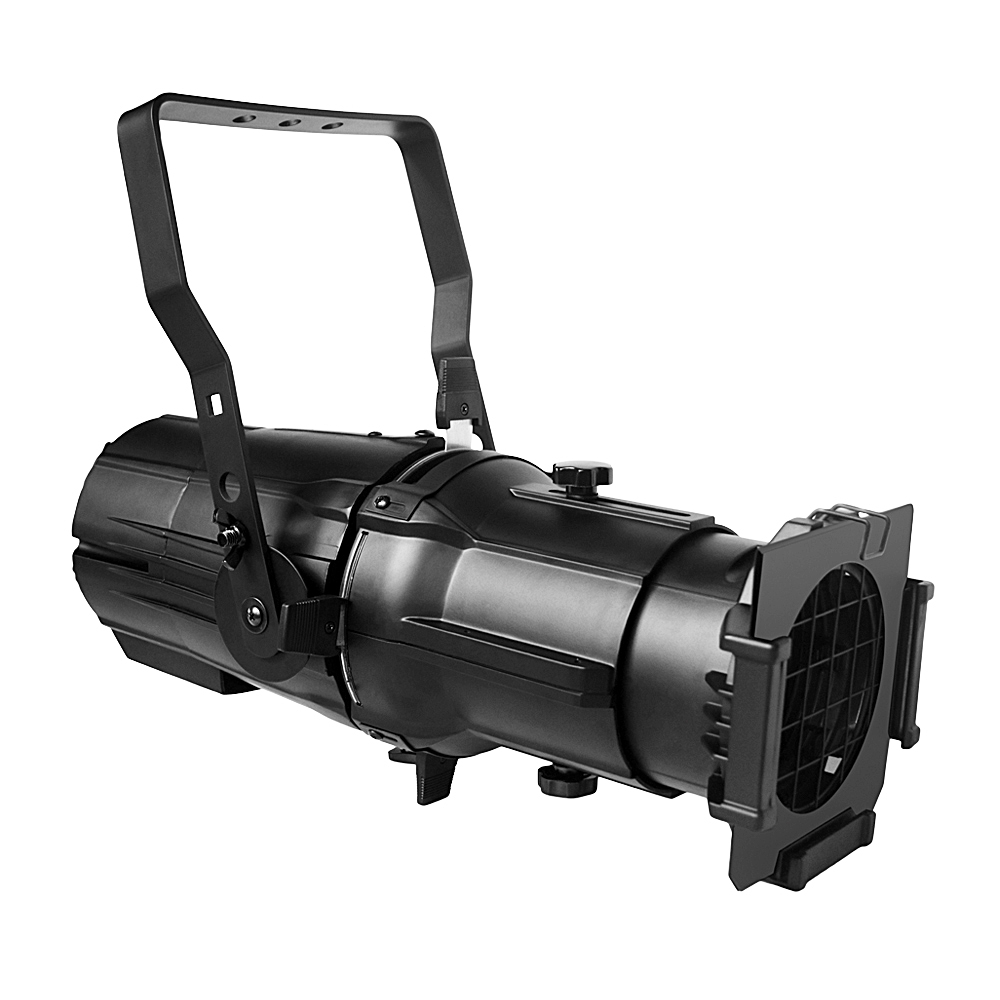

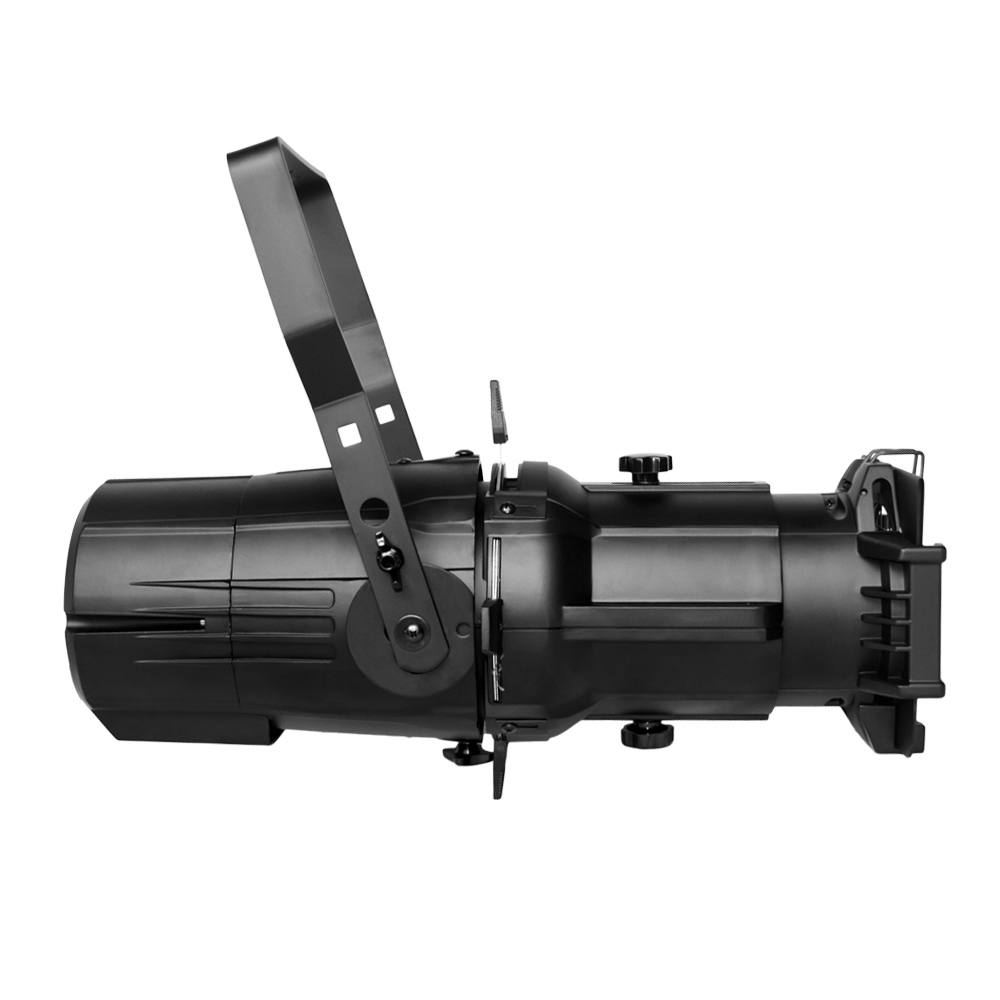

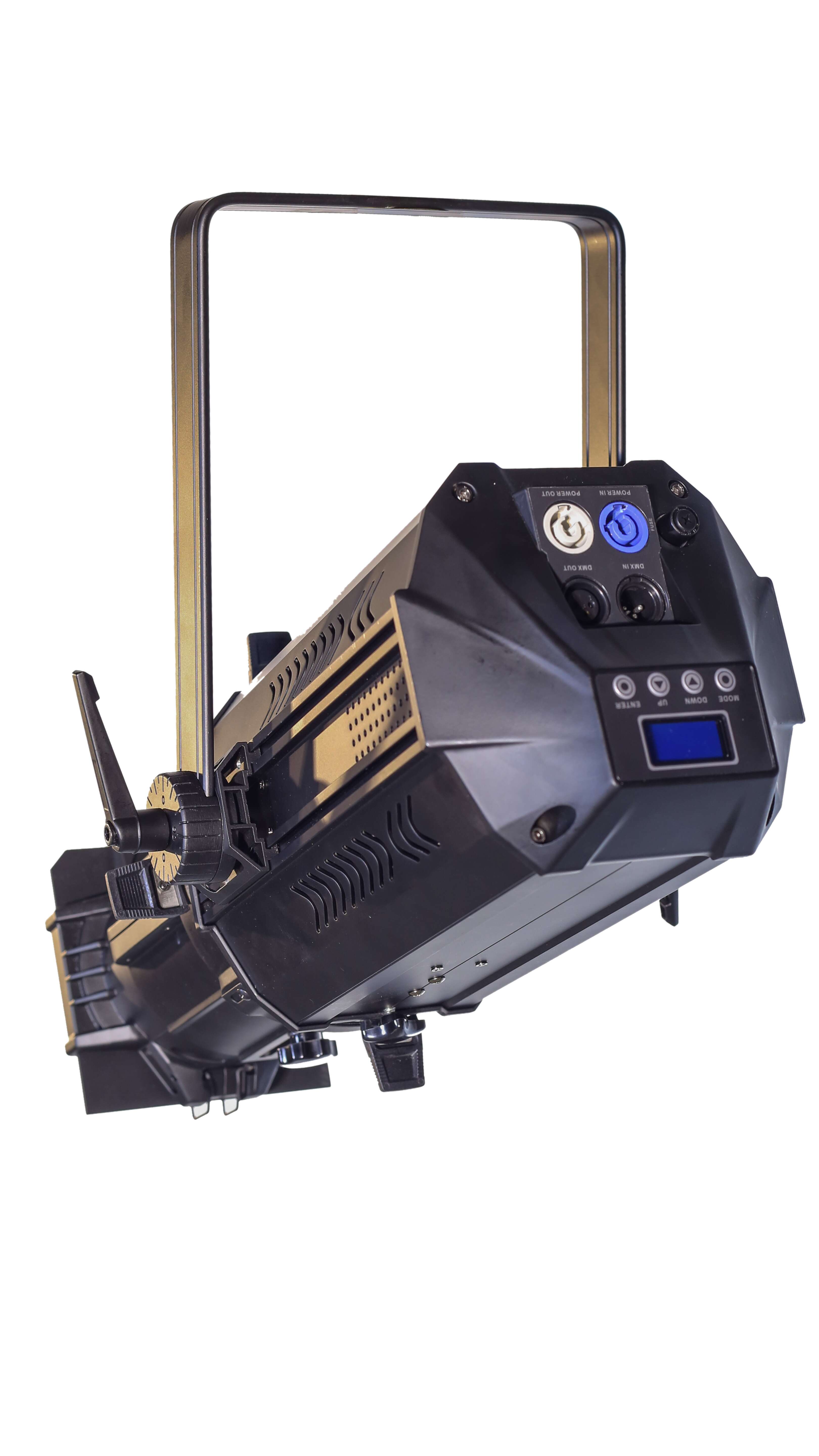

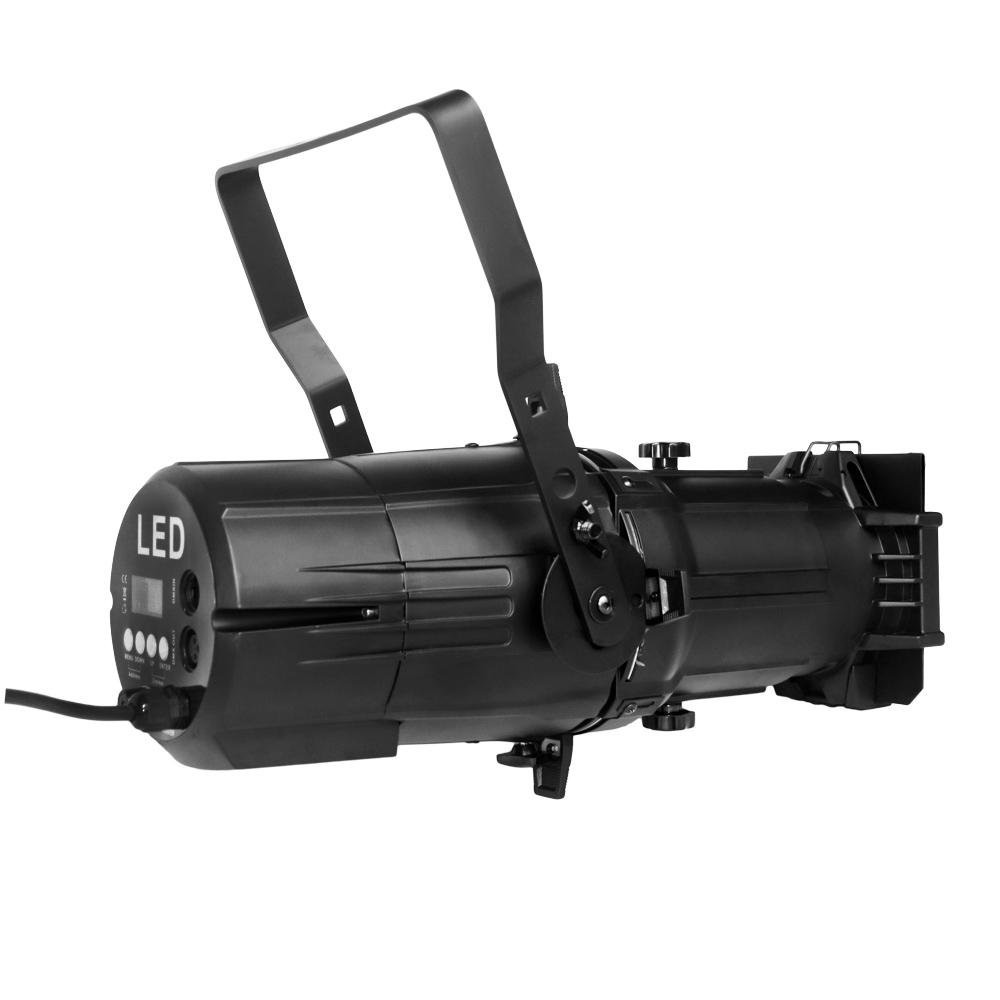

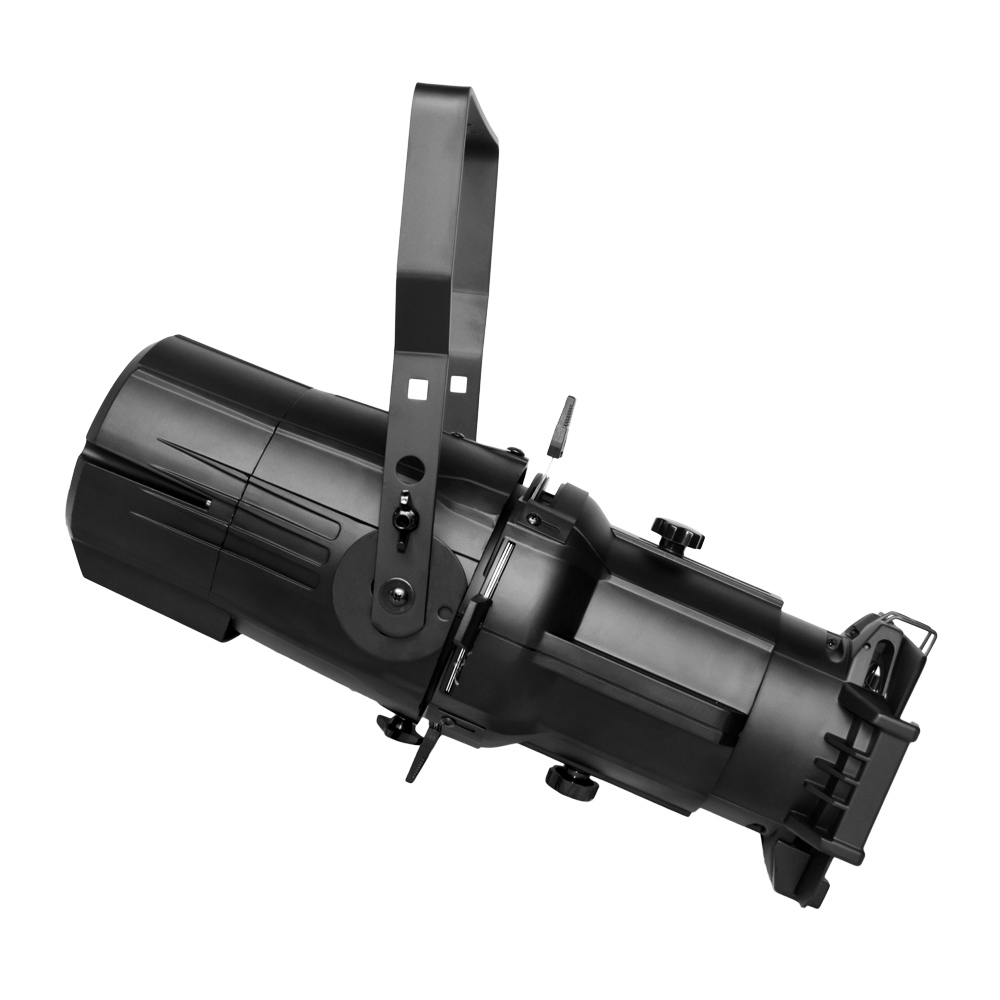

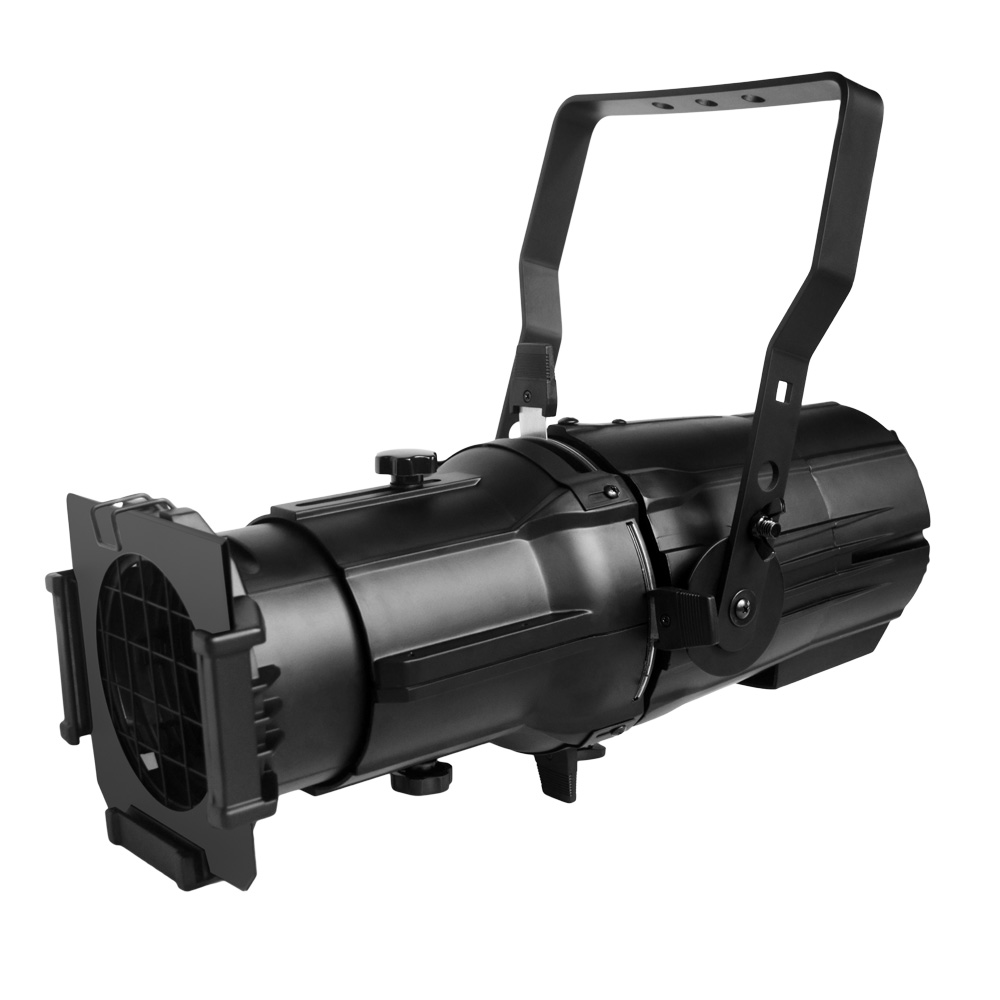

COB Panel Light_IMAGE600 200W Profile Spotlight

Brand: STSLITE

Factory Price: Negotiate

Supply Ability: 200,00 Piece/Pieces per Month

Port: Guangzhou

Payment Terms: Cash Westnm Union T/T

Min.Order Quantity: 1 PC

ODM & OEM: Availabie

Certification: CE/FCC

Inquire Online

Product Information

IMAGE600 features a uniform light beam with sharp imaging edges. It can cut the light spot into various shapes (square, diamond, triangle, etc.) or project custom patterns and designs. With flicker-free dimming and stable performance, it is commonly used for spotlighting stage objects and performers, as well as serving as a stage wash light.

Parameters

Details

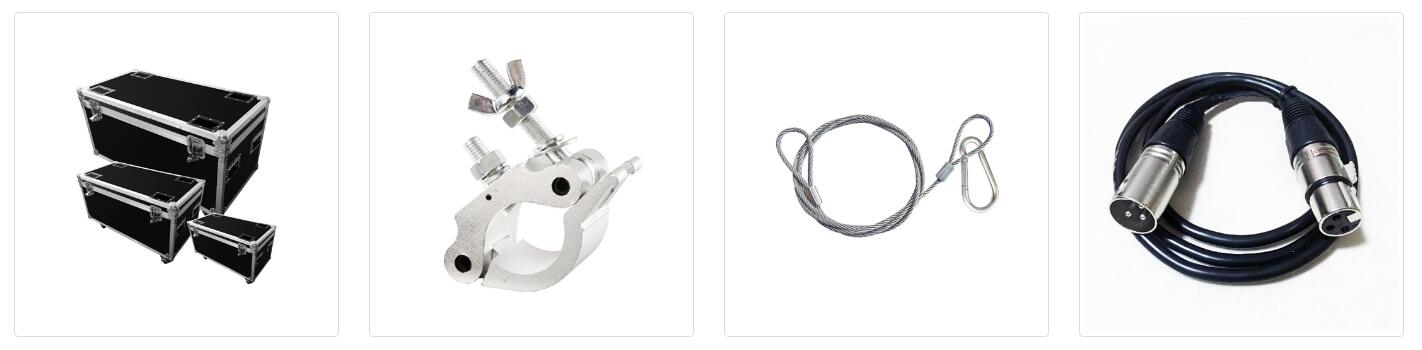

Optional accessories

Features

Electrical Parameters:

Input Voltage: 100-240V, 50/60Hz
Power Consumption: 220W

Light Source Parameters:

LED Type: 200W Single White COB
LED Lifespan: 50,000 hours
Color Temperature: 3200K/5600K (switchable)
CRI (Color Rendering Index): >95
Refresh Rate: 2000Hz

Optical Parameters:

Beam Angle: 19°/26°/36°/50° (selectable)
Illuminance: 2400 Lux @5m

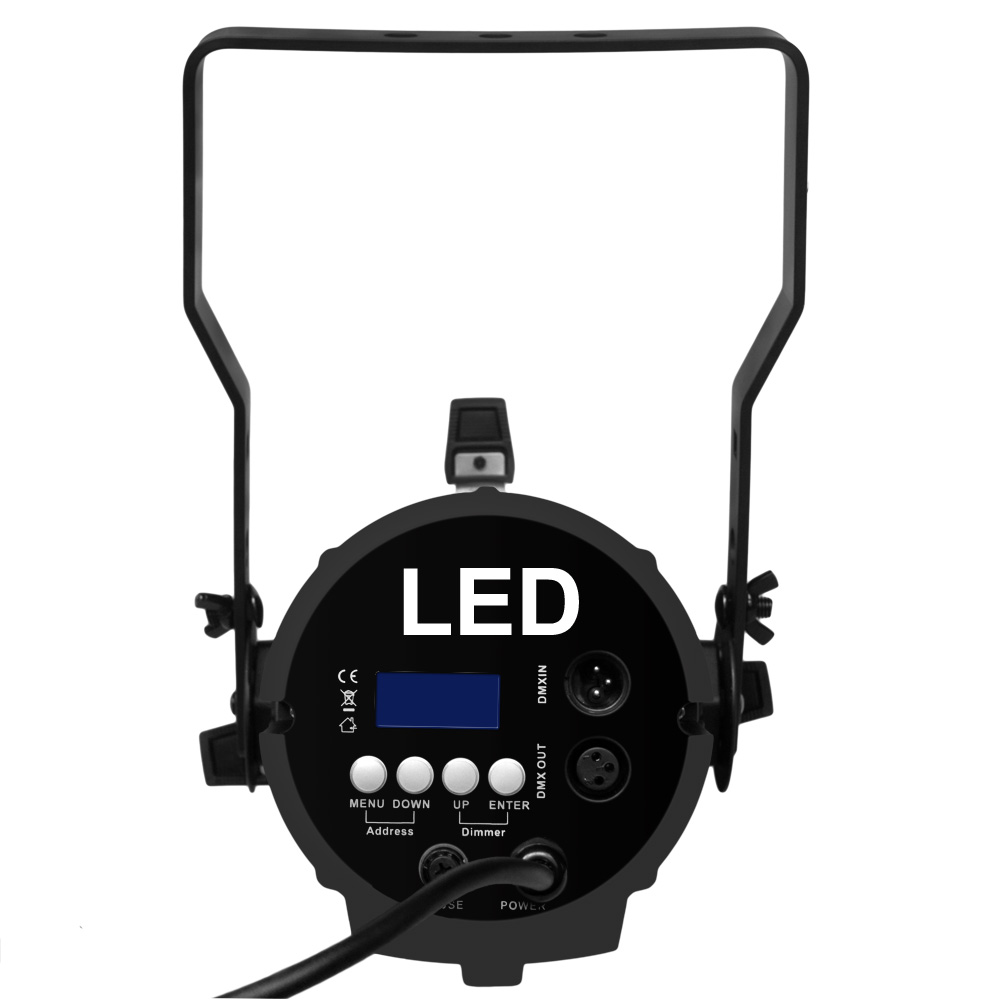

Control & Display:

Display: LCD panel + 4-button control
DMX Channels: 2 channels
Control Modes: DMX512, Manual Mode
Dimming: 0-100% linear dimming
Strobe: Electronic strobe effect
Focus: Manual focus adjustment

Thermal Management:

Cooling System: High-power heatsink + silent fan

Features:

Beam shaping (square, diamond, triangle, etc.)
Custom gobo pattern projection

Construction & Connectivity:

Housing Material: Die-cast aluminum
IP Rating: IP20
Power Connection: Aviation plug (input/output)
DMX512 Interface: 3-pin XLR (input/output)

Physical Specifications:

Dimensions: 55×25×22 cm
Gross Weight: 6.5 kg
