Product Information

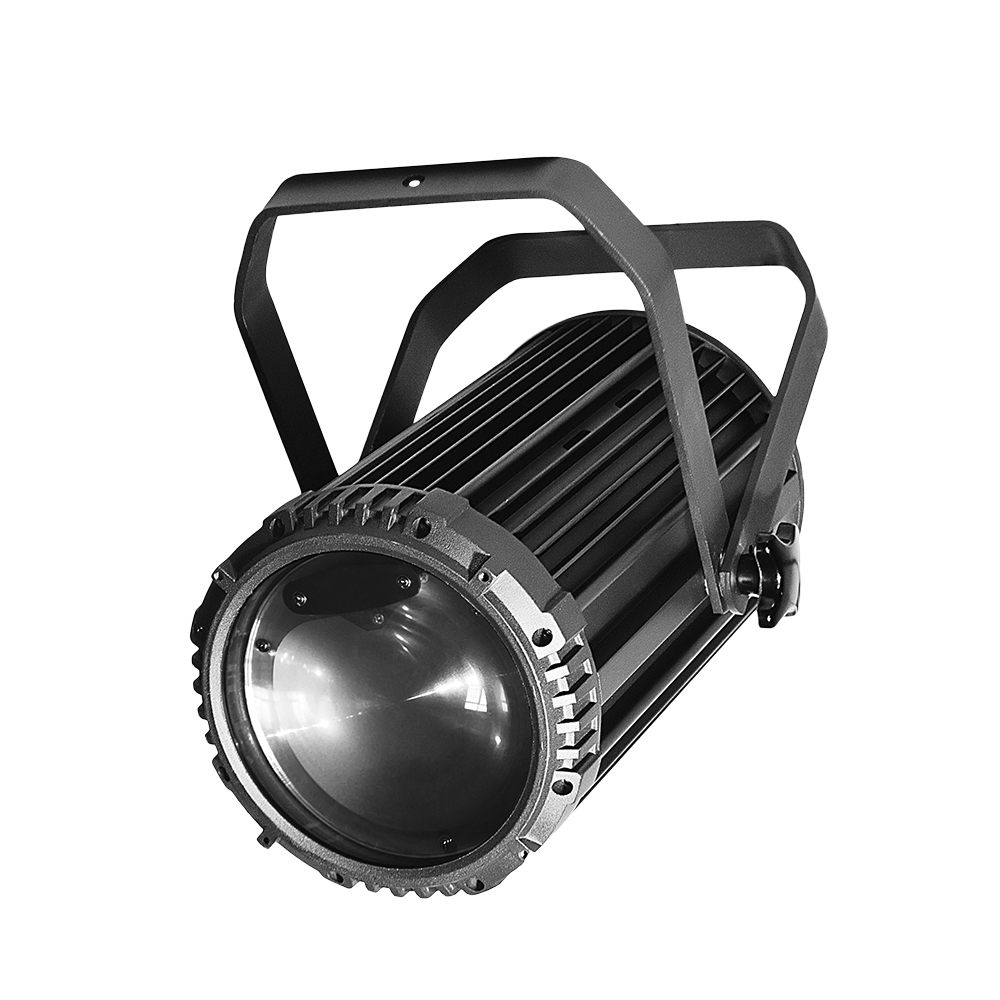

C PAR 100TR is equipped with RGB(red, green, and blue) COB LED. At the outer ring,installed with 32pcs 0.2W SMD LED. It is compact size but powerful. It is of energy saving and fit for professional stage performance.It has 30°or 60°degree beam angle with perfect wide scan field.Easy to connect and return to pack.

Parameters

※ HOUSING

◈ Aluminum Housing

※ SOURCE

◈ (1) 100W RGB COB LED

◈ (32) 0.2W RGB SMD LED

◈ 50,000 Hour Average LED Life

※ PHOTOMETRIC DATA

◈ C PAR 100TR

◈ 2770 LUX@1M

※ EFFECTS

◈ Color Changing

◈ Outer Ring LEDs and Main LED Can be Separately Controlled

◈ Strobe/ Pulse: 1-10 times/S

◈ Dimming: 0-100% Linear Electronic

◈ Variable Dimming Modes

※ COLOR

◈ RGB Color Mixing

◈ Variable Color Temperatures (2700K to 6400K)

※ CONTROL

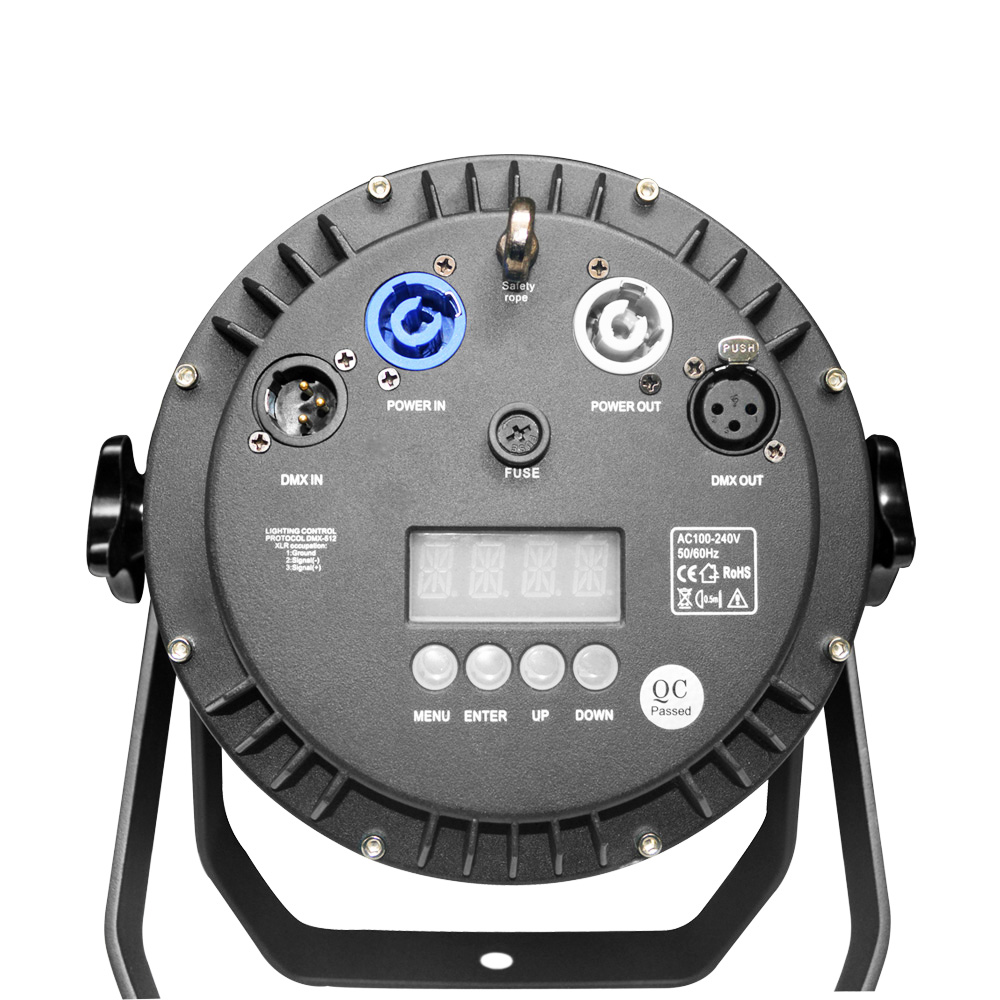

◈ 4 Button Control Panel

◈ LED Menu Display

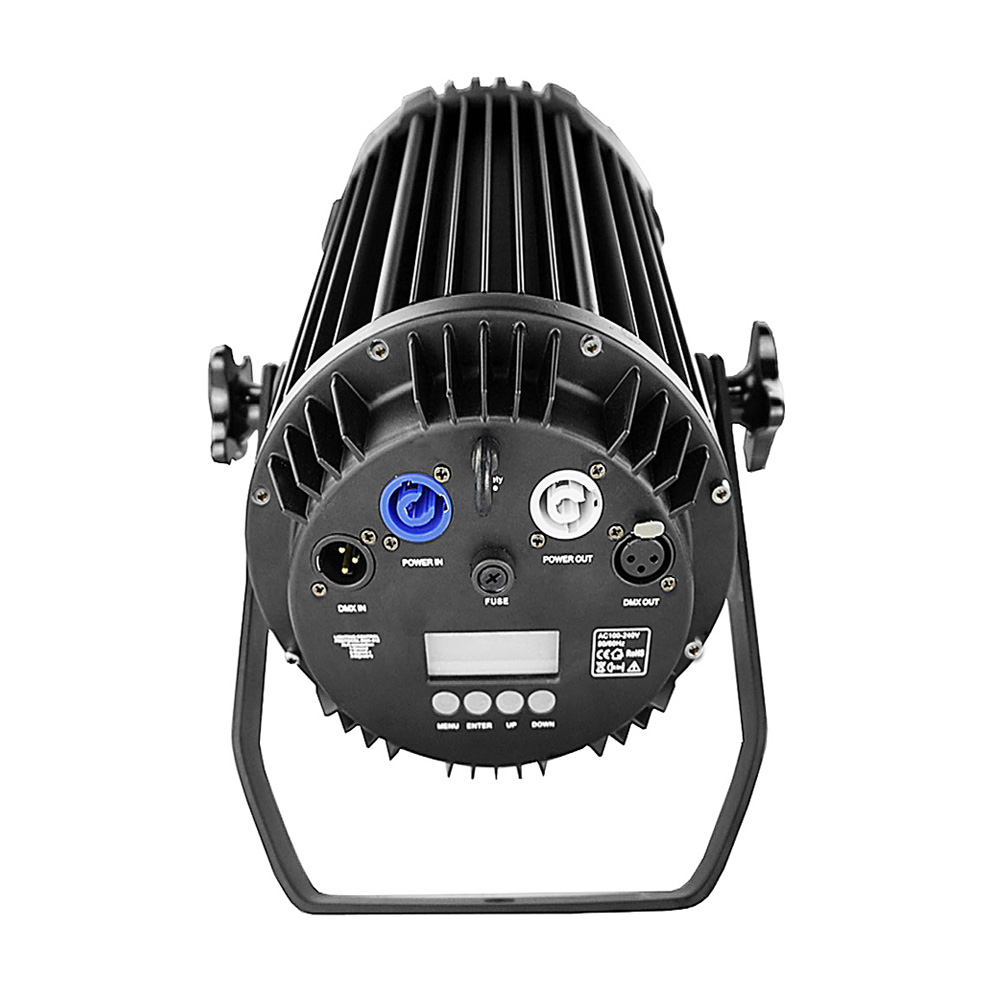

◈ 3pin DMX In/Out

◈ C PAR 100TR: (5/6/7/12) DMX Channel Modes

※ POWER

◈ 100-240V AC, 50/60Hz

◈ 120W Power Consumption

※ SIZE/WEIGHT

◈ Length: 33cm

◈ Width: 21.5cm

◈ Height: 21.5cm

◈ Weight: 2.8kg

※ OPTIONAL ITEMS

Removable Barn Doors

※ PACKAGE

◈ Packing: 4 in 1

◈ Inner Package: Carton

◈ Outer Package: Carton or Flight Case

Details

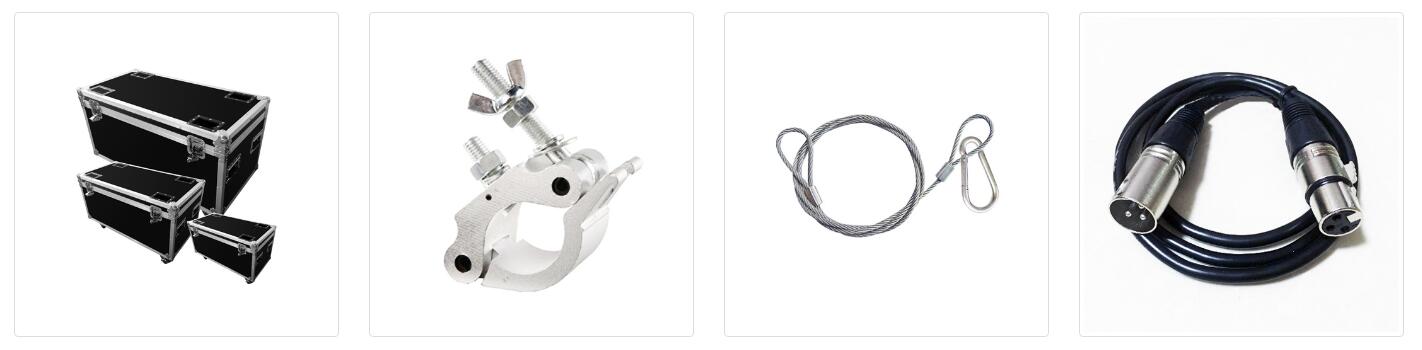

Optional accessories

Features

◈ IP20 Rated
◈ Main Source RGB COB LED; Outer Ring RGB LED
◈ Outer Ring LEDs and Main LED Can be Separately Controlled
◈ Color Mixing
◈ Color Temperatures (2700K to 6400K)
◈ Beam Angle: 60° (Optional 30°)
◈ Fan Cooled
◈ Variable Dimming Modes
◈ DMX, Master/Slave, Auto/Sound, Stand-alone Mode
◈ Color Temperature Setting
◈ Build-in Program with Speed Adjustment
◈ Temperature Sensor via Software to Control Fans Speed Against Overheat
