GuangZhou STS Lighting Equipment Co.,Ltd.

Product Information

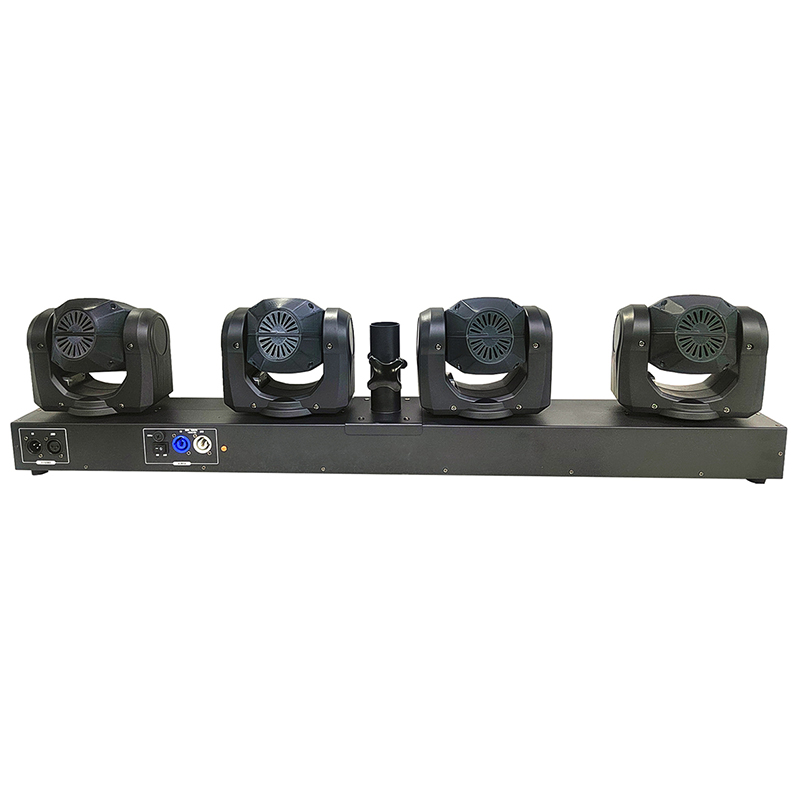

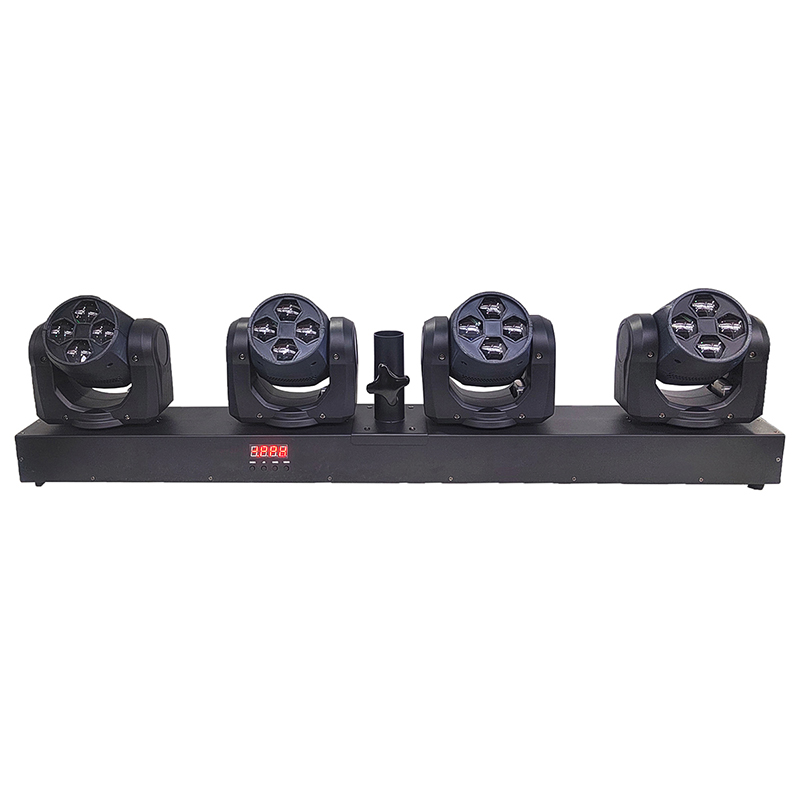

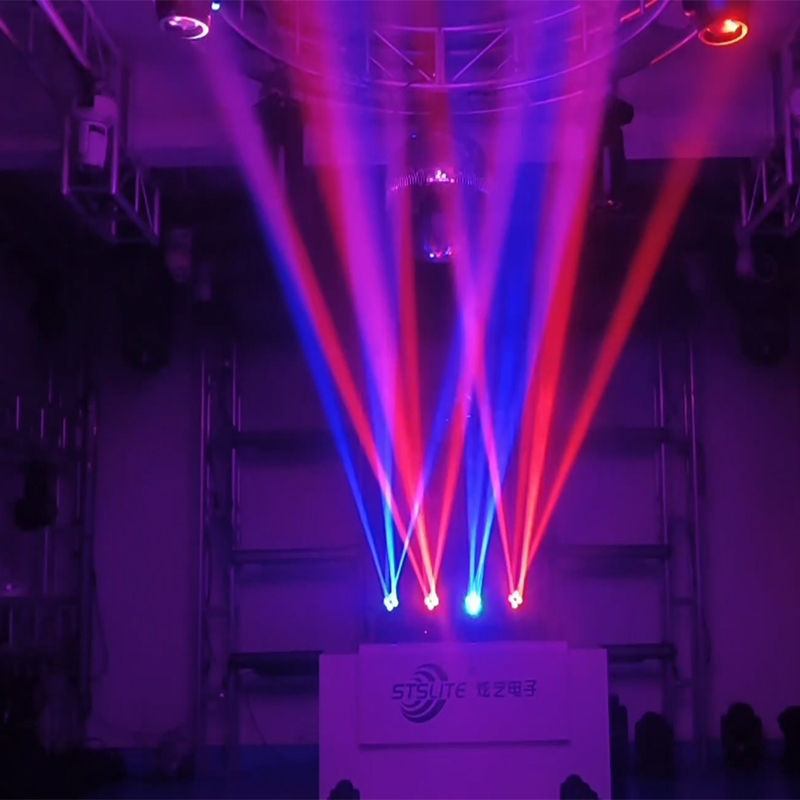

LED lighting system with 4 individually controllable moving heads wash with flower effect in RGBW

Parameters

※ HOUSING

◈ Environmentally friendly flame-retardant materials

※ Electrical Specifications

◈ Power: 225W
◈ Voltage: AC 100-240V, 50/60Hz

※ Light Source

◈16 × 15W SMD 6065 QCL 4-in-1 RGBW LEDs per head

◈Beam angle: 2°–55° adjustable

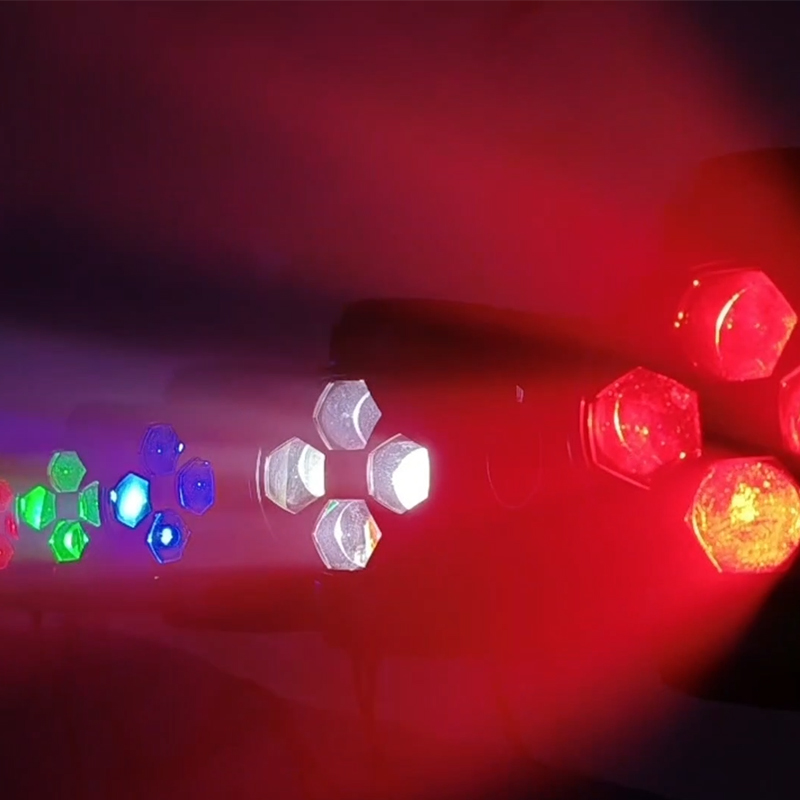

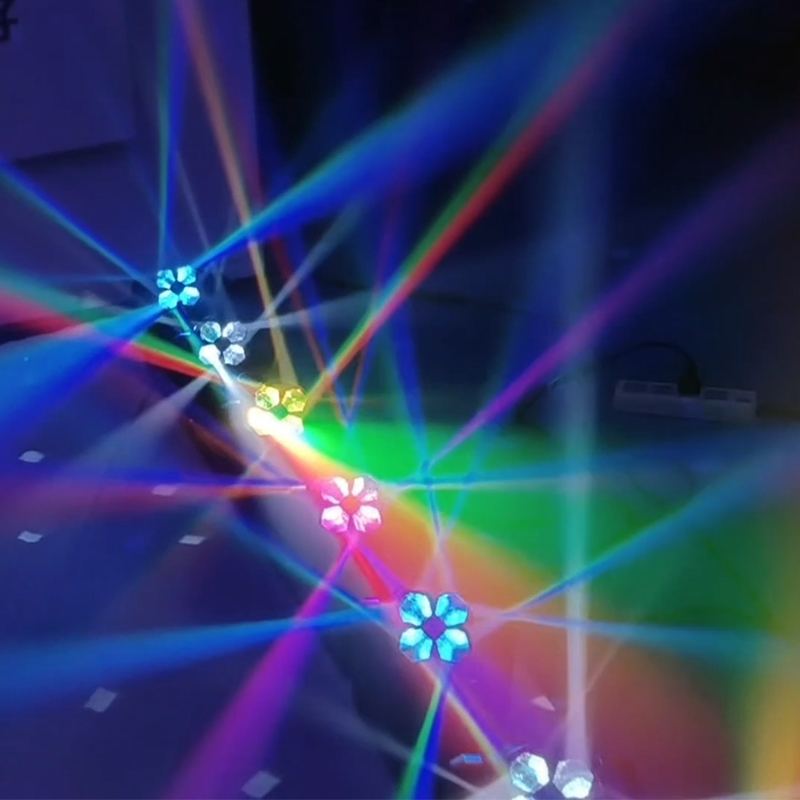

◈4 individually controllable moving heads with flower & beam effects

◈Lens rotation capability

※ Control & Modes

◈Dimming, motion macros, color macros, and color selection adjustable

◈22 built-in show programs

◈Flicker-free operation

◈DMX fail modes: Hold / Blackou

※ Connectivity

◈Modes: Stand-alone, Sound-activated (via mic), DMX, Master/Slave

◈Wireless options: W‑DMX / CRMX (LumenRadio)

◈Power linking: Mains input & output (up to 8 units)

※ Movement & Control

◈ Pan: 540° (16-bit)
◈ Tilt: 270° (16-bit)
◈ Photoelectric reset system
◈ XY inversion capability

※ SIZE/WEIGHT

◈ Weight.: 12.20kg

◈ Gross Weight .: 14.50kg

◈ Packaged :108x33x25.5cm

※ Construction

◈Dual cooling: fan at base + fan at head

◈Includes omega bracket & 4 rubber feet

◈Monochrome 4‑digit 7‑segment LED display

※

Details

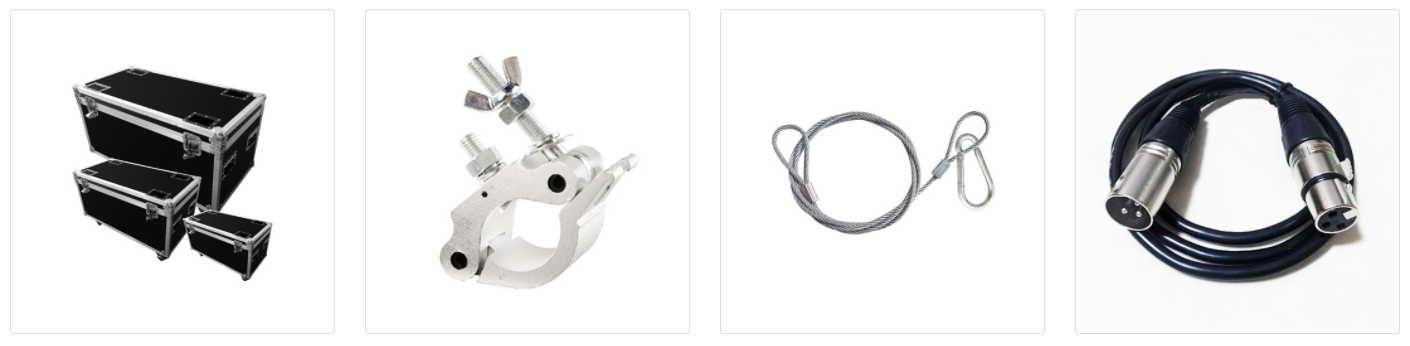

Optional accessories

Features

* 100V-240V,50Hz/60Hz
* 16 powerful LEDs 15 W SMD 6065 4in1 QCL RGBW
* With a beam angle of 2° - 55°
* 5/9/14/16/25/29/44/52CH DMX channel in optional
* Manual focus
* 0~100% linear dimmer and 1~20 times/sec high speed electronic strobe
* DMX512, master-slave,Auto and sound activated controllable
* 4 digit 7-segment LED display
* Pan/Tilt fine, Pan 540°,Tilt270°
* Package size:108*33*25.5cm
* N.W.:13.50kg G.W.:15.10kg
