GuangZhou STS Lighting Equipment Co.,Ltd.

Product Information

Parameters

※ Electrical Parameters

◈ Power: 700W

◈ Voltage: AC 100-240V, 50/60Hz

※ Light Source
◈ Beam (Inner Ring): 200W High-Brightness LED (3° Narrow Beam)
◈ Wash (Outer Ring): 12× 40W High-Brightness LEDs + 3535 RGBW Auxiliary LEDs
◈ Additional Effects: Dual-ring RGB LED light strips

※ Optical System

◈ 13-color fixed color wheel
◈ 6 gobos + 3 effect patterns + white open
◈ 8-facet prism + 16-facet prism (stackable)
◈ Frost filter

※ Wash Effects

◈ RGBW quad-color honeycomb lens + 3535 RGBW auxiliary light
◈ CCT adjustment: 2500K–8000K
◈ Zoom angle: 8°–55°
◈ Supports honeycomb rotation, color macros, firefly/stroboscopic effects, etc

※ Control Features
◈ DMX Channels: 35/83 selectable
◈ Control Modes: DMX512, Master/Slave, Sound-Activated, Auto
◈ Dimming: 0–100% linear
◈ Strobe: Random/variable speed/Hz-adjustable
◈ Focus: Motorized focus system

※ Physical
◈ Dimensions: 44×28×56cm
◈ Net Weight: 27.3kg
◈ Protection Rating: IP20 (indoor use)

Details

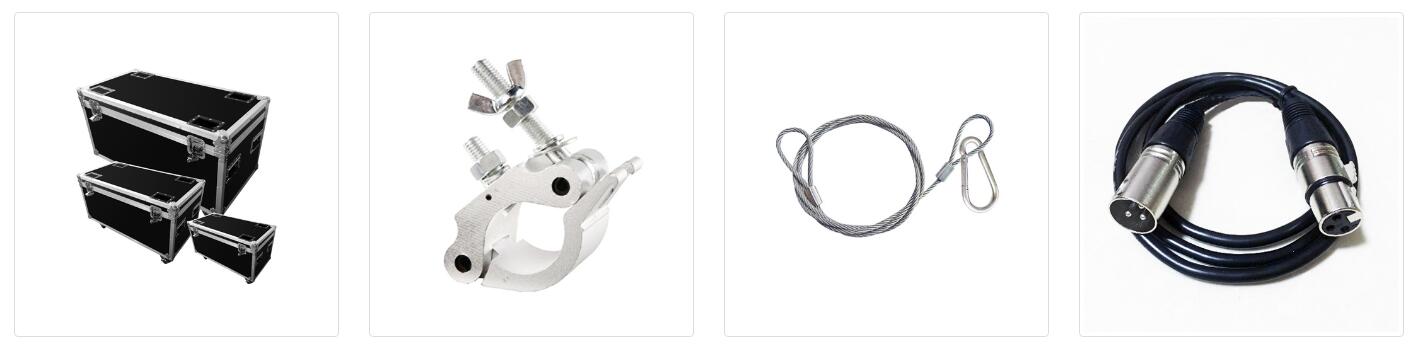

Optional accessories

Features

100-240V, 50/60Hz
Power: 120W
6x10W RGBW four in one ultra high brightness LED beads
12 or 24 international standard DMX512 channels
Horizontal scanning: infinite rotation (16 bit precision scanning) magnetic positioning
Vertical scanning: 135 ° (16 bit precision scanning) mechanical positioning
Four LED menu displays with four touch switches
0-100% electronic dimming, 0-30/s high-speed strobe
Lens optical system: high transmittance PMM non spherical lens with a beam angle of 4 °

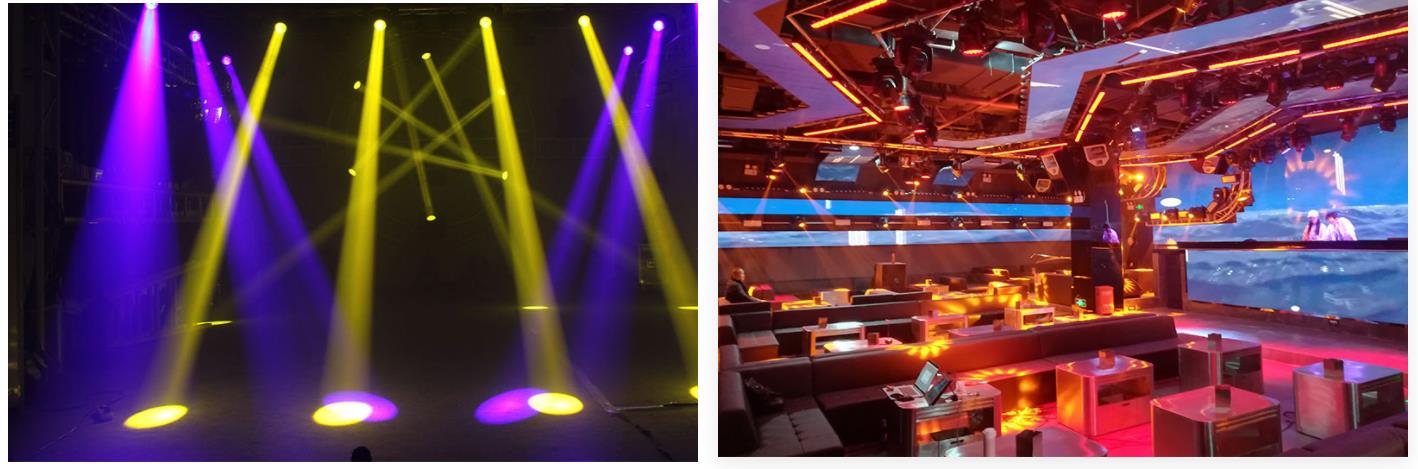

Application
