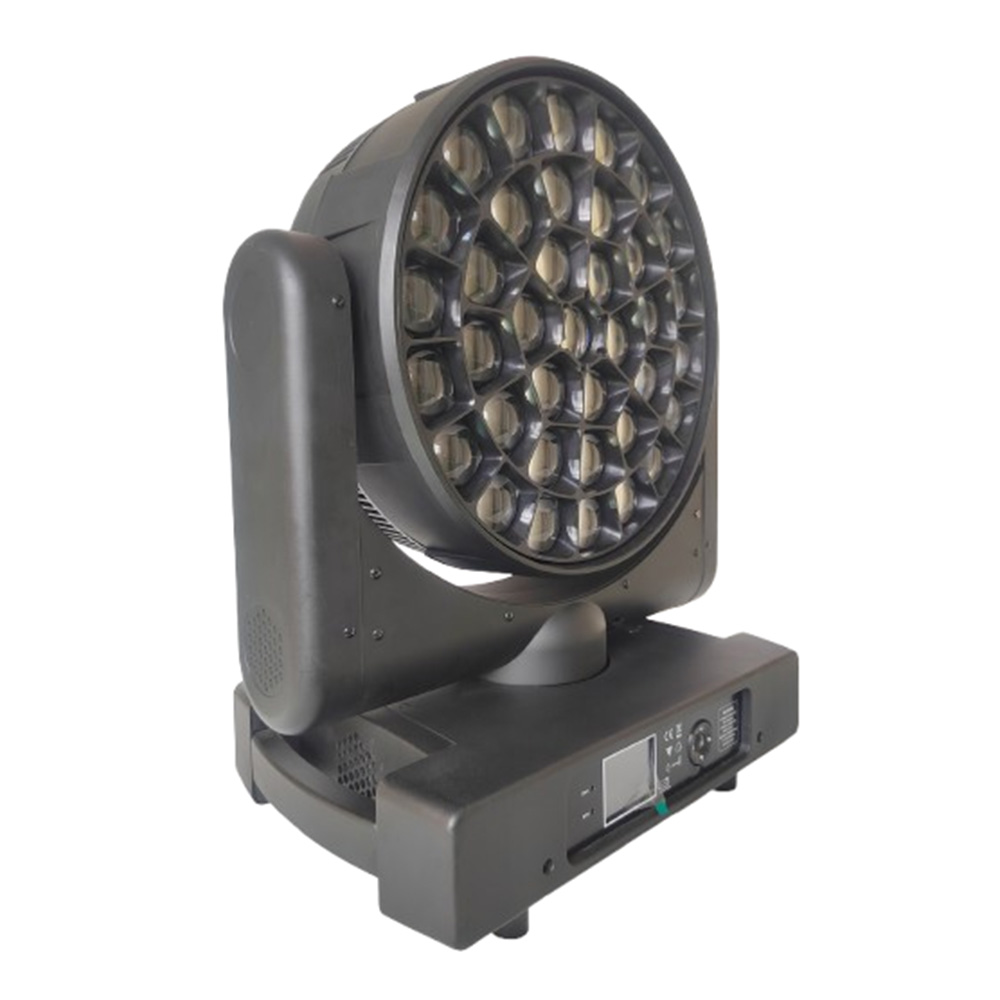

Moving Head Wash-ANOLE1700 37x40W RGBW Quad-Eye Moving Head Light

Moving Head Wash-ANOLE1700 37x40W RGBW Quad-Eye Moving Head Light

Brand: STSLITE

Factory Price: Negotiate

Supply Ability: 200,00 Piece/Pieces per Month

Port: Guangzhou

Payment Terms: Cash Westnm Union T/T

Min.Order Quantity: 1 PC

ODM & OEM: Availabie

Certification: CE/FCC

Inquire Online

Product Information

Parameters

※ Electrical Parameters

◈ Power: 1650W

◈ Voltage: AC 100-240V, 50/60Hz

※ Light Source

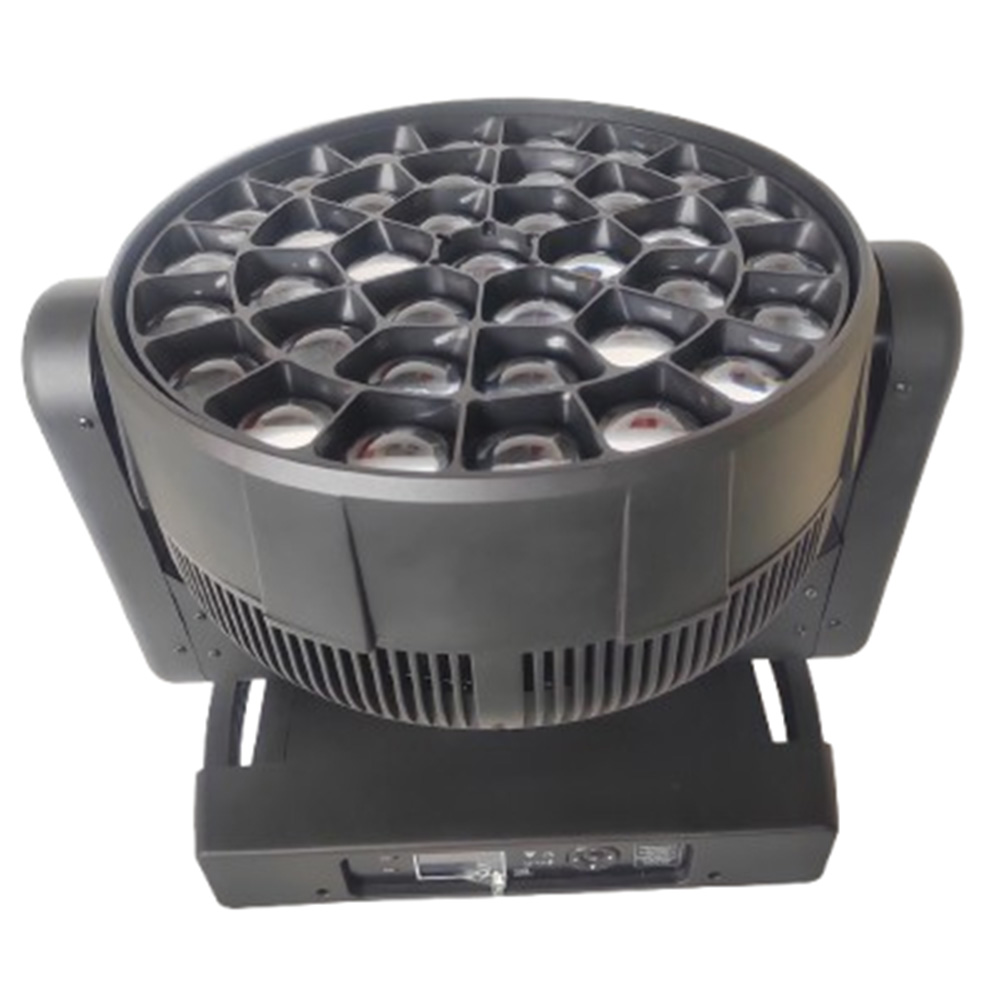

◈37×40W RGBW high-brightness LEDs
◈Lifespan: 20,000 hours

※ Control System

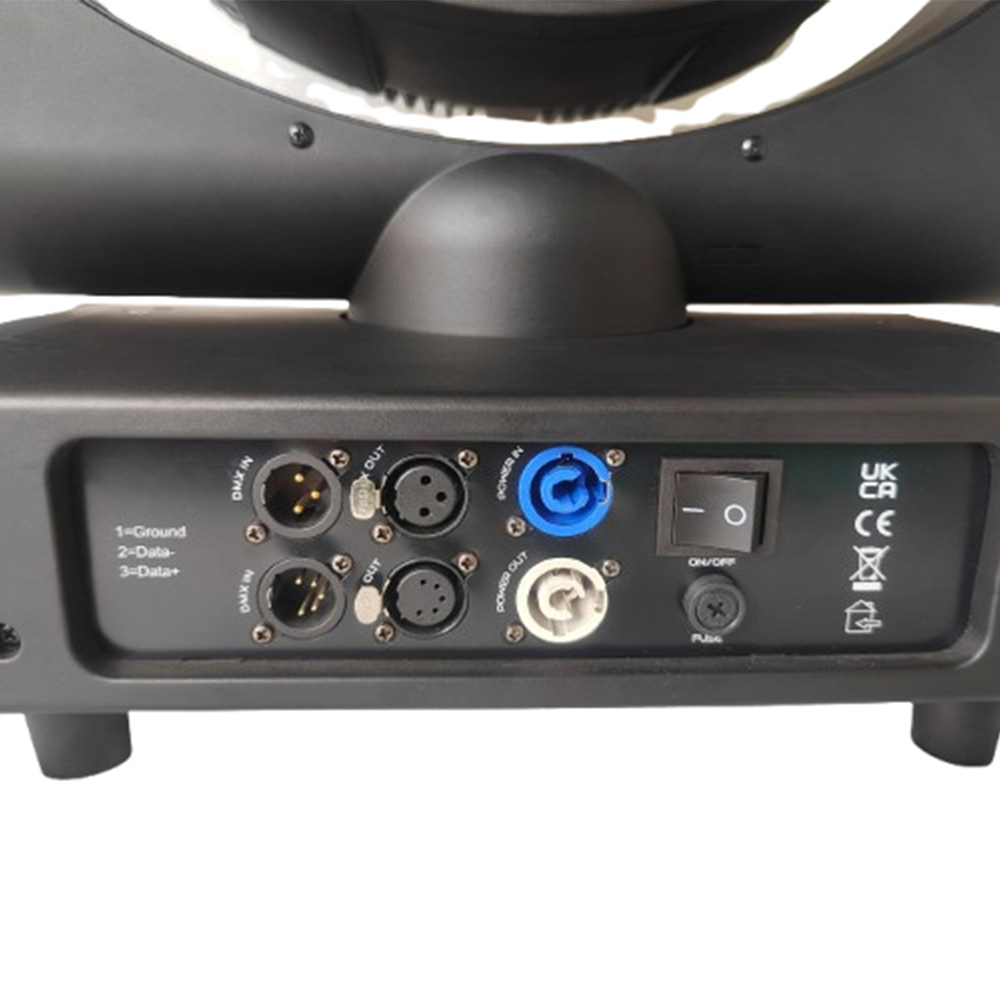

◈Protocols: DMX512, RDM

◈Modes: Master/Slave, Sound-active

◈Channel options: 21/22/35/36/111/148CH

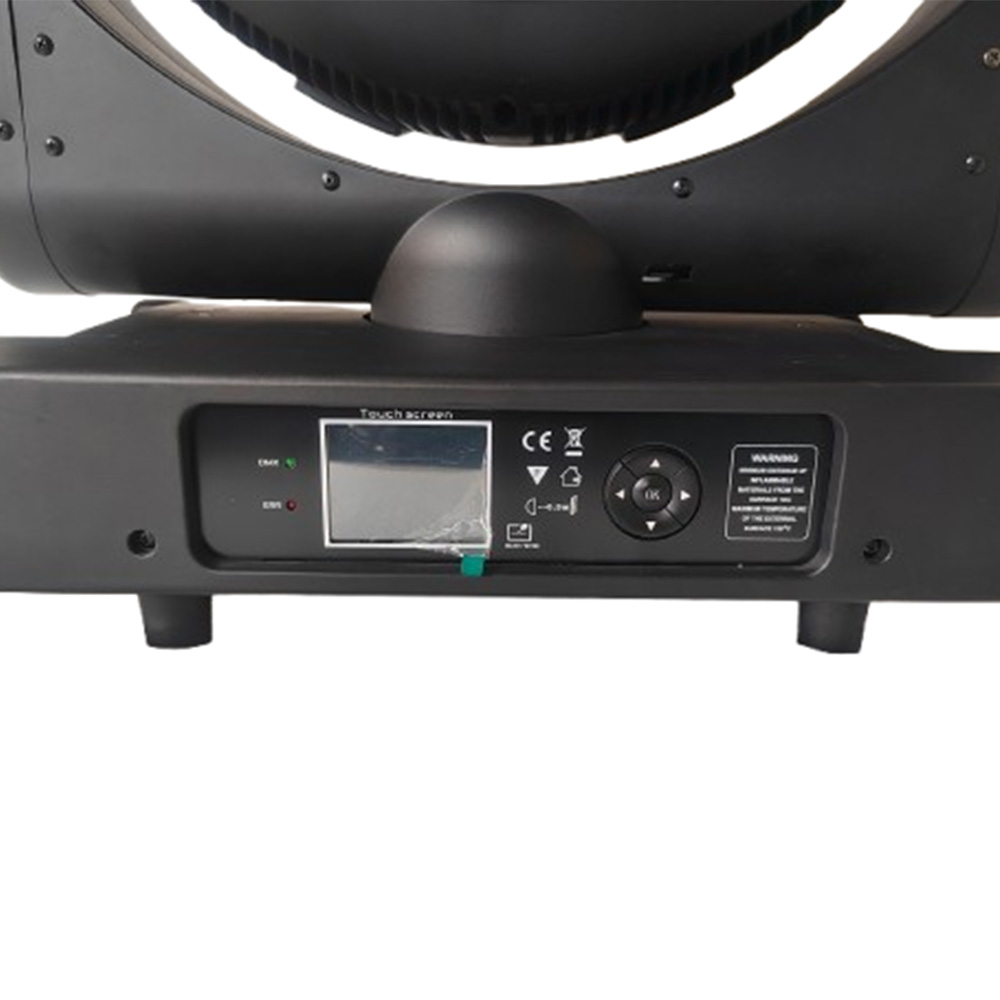

◈2.8" LCD touchscreen with bilingual menu

◈RDM auto-addressing

※ Optical Performance

◈Zoom: 15°-45°

◈CCT: 2500K-10000K

◈RGBW color mixing (flicker-free)

◈Prism effects:

360° continuous rotation with auto-correction

Kaleidoscope/Waistline effects

Static/Dynamic macro effects

※ Movement & Control
◈Pan: 540° (16-bit)
◈Tilt: 270° (16-bit)
◈Photoelectric reset system
◈XY inversion

※ Features
◈Individual pixel control
◈Strobe: 1-25Hz (variable/random)
◈Dimming: 0-100% linear
◈Smart monitoring:
◈Usage time tracking
◈Temperature monitoring
◈Fault diagnostics
◈Intelligent thermal management

※ Construction
◈Material: Flame-retardant engineering plastic
◈IP Rating: IP20

※ Dimensions & Weight
◈Unit: 49×30×62cm / 24.5kg
◈Packaging: 67×59×42cm
◈Net weight: 24.7kg
◈Gross weight: 30.7kg

Details

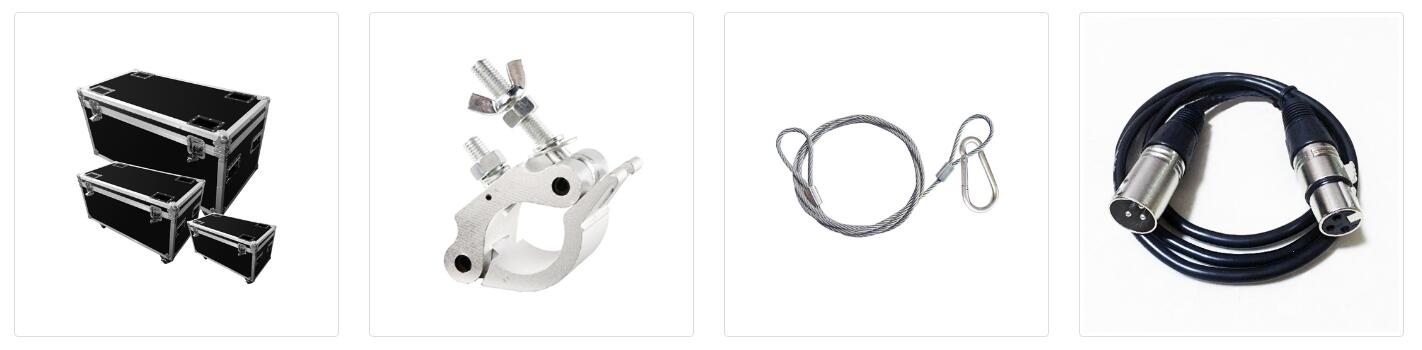

Optional accessories

Features

◈ 100V-240V,50/60Hz
◈ 37x40w RGBW 4 IN 1 high power LEDs
◈ 21/22/35/36/111/148 DMX channel
◈ zoom angel from 15 to 45 °
◈ DMX512, master-slave and sound activated controllable and auto with built-in programs
◈ RGBW mixing
◈ 0-100% dimmer
◈ Strobeup to 25Hz,random and pulse strobe Pixel control and bee eye effect
◈ Current control system for LED protection with stable running
◈ LCD display and 5 button touch screen control panel
◈ Full intellectualized protective for high temperature and resistance to electronic circuit
◈ IP20 protection level
◈ Product Dimensions: 49×30×62cm, N.W：24.7kg

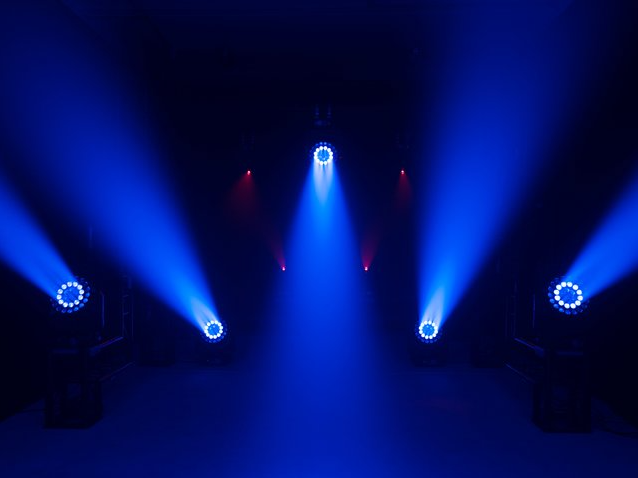

Application
