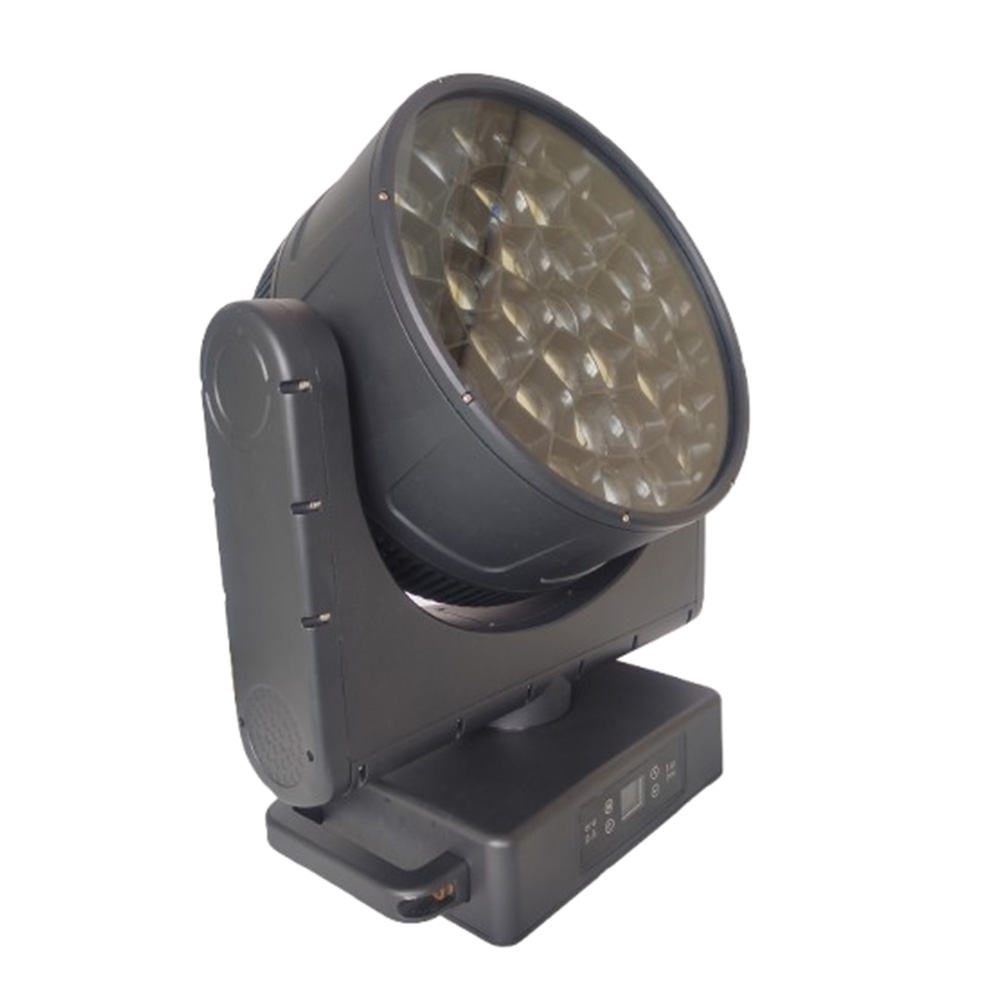

Moving Head Wash-ANOLE1700IP 37x40W RGBW Quad-Eye Waterproof Moving Head Light

Moving Head Wash-ANOLE1700IP 37x40W RGBW Quad-Eye Waterproof Moving Head Light

Brand: STSLITE

Factory Price: Negotiate

Supply Ability: 200,00 Piece/Pieces per Month

Port: Guangzhou

Payment Terms: Cash Westnm Union T/T

Min.Order Quantity: 1 PC

ODM & OEM: Availabie

Certification: CE/FCC

Inquire Online

Product Information

Parameters

※ HOUSING

◈ Die-cast Magnesium Alloy

※ Electrical Specifications

◈ Power: 1650W
◈ Voltage: AC 100-240V, 50/60Hz

※ Light Source

◈ 37×40W RGBW LEDs (20,000hrs lifespan)
◈ High brightness quad-chip technology

※ Control System

◈ Channel Options: 21/22/35/36/111/148CH
◈ Protocols: DMX512, RDM
◈ Modes: Master/Slave, Sound Active
◈ 2.8" LCD Touchscreen (Bilingual UI)
◈ Auto addressing (RDM)

※ Optical Performance

◈ Beam Angle: 7°-35° zoom
◈ CCT Range: 2500K-10000K
◈ RGBW Color Mixing (flicker-free)
◈ Special Effects:
   360° rotating prism (auto-correcting)
   Kaleidoscope/Waistline effects
   Static/Dynamic macros

※ Movement & Control

◈ Pan: 540° (16-bit)
◈ Tilt: 270° (16-bit)
◈ Photoelectric reset system
◈ XY inversion capability

※ SIZE/WEIGHT

◈ Length: 53cm

◈ Width: 28cm

◈ Height: 63cm

◈ Weight: 31.1kg

◈ Packaged: 67×59×42cm ,G.W.: 42.3kg

※ Features

◈ Individual pixel control
◈ Strobe: 1-25Hz (variable/random)
◈ Dimming: 0-100% linear
◈ Smart monitoring:
   Usage hours tracking
   Temperature monitoring
   Fault diagnostics

※ Construction

◈ Material: Magnesium alloy casing
◈ IP Rating: IP65 (waterproof)

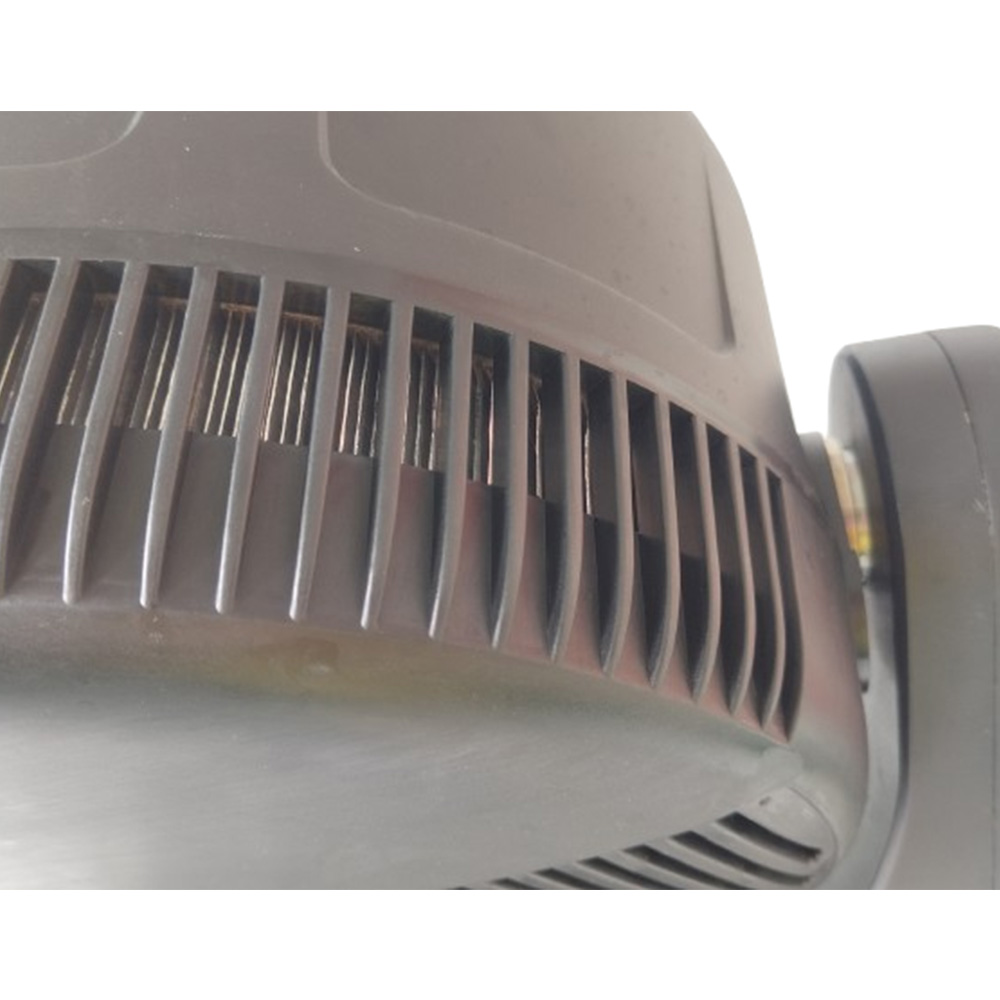

◈ Cooling: Auto-speed thermal management

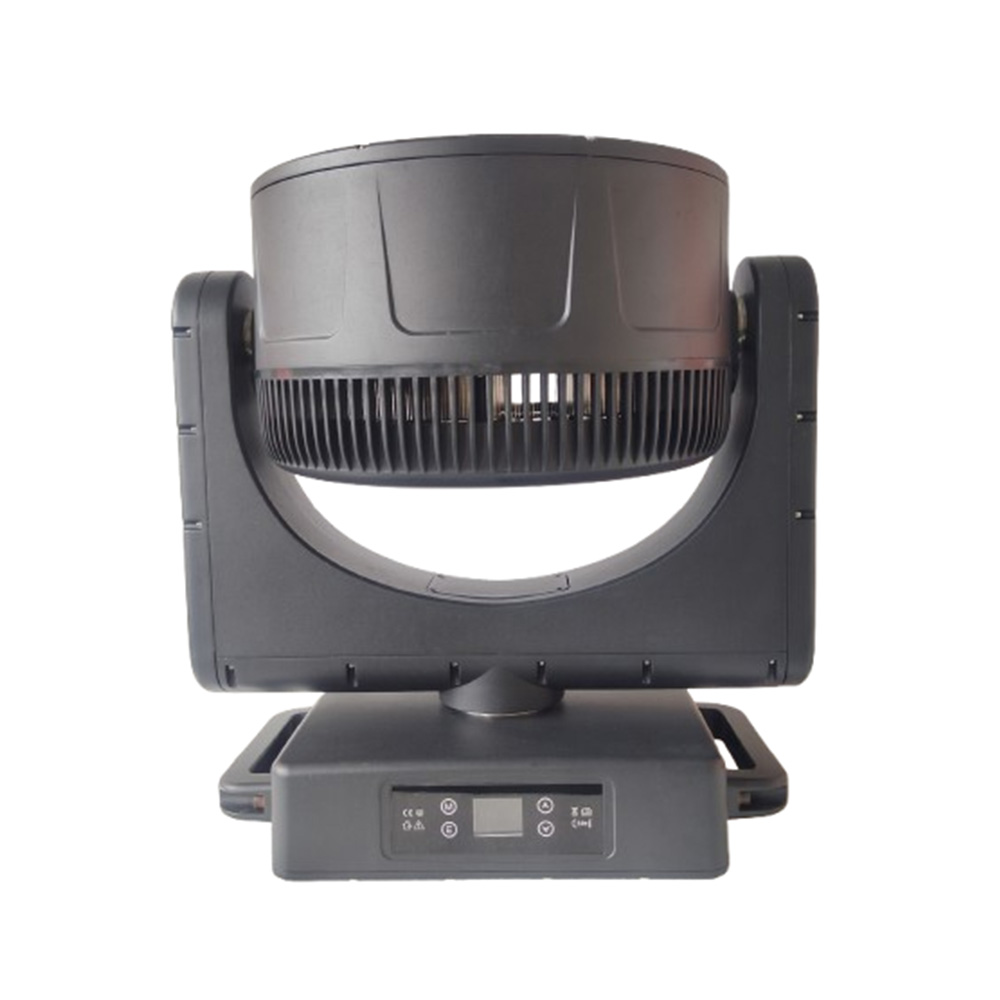

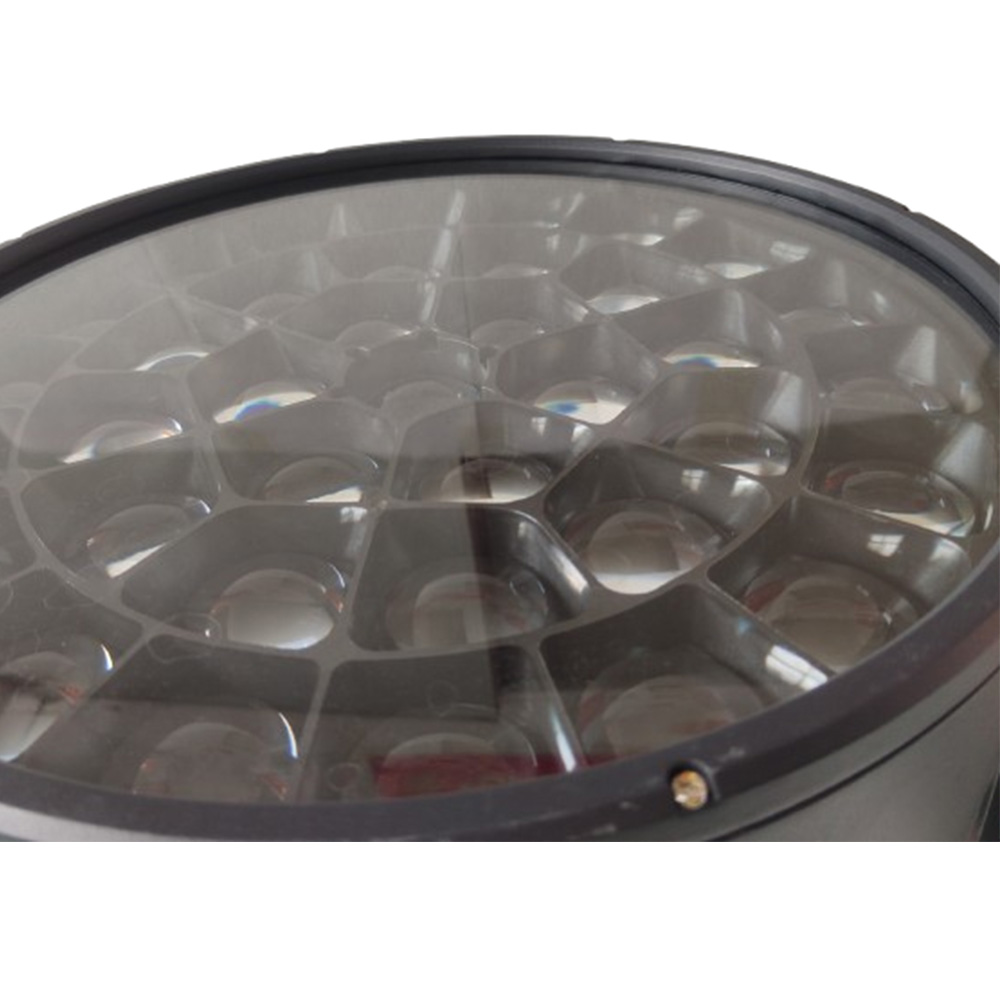

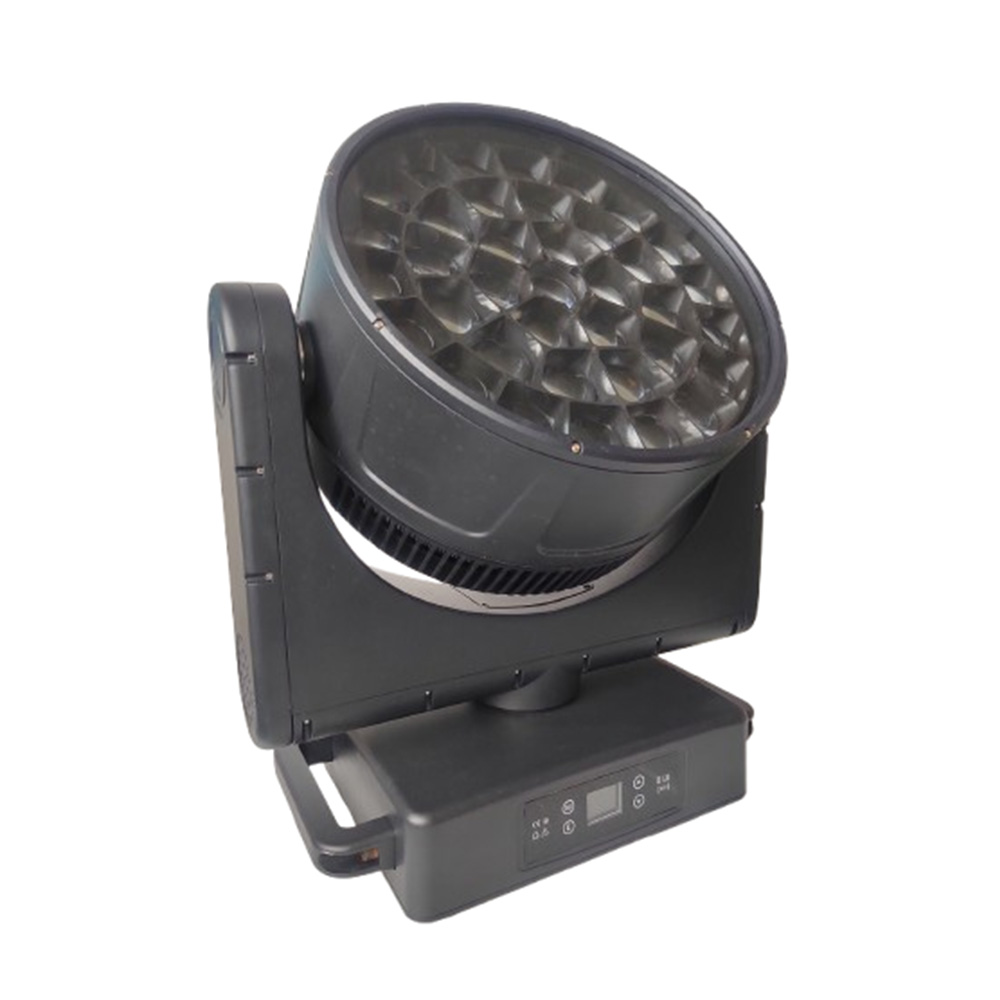

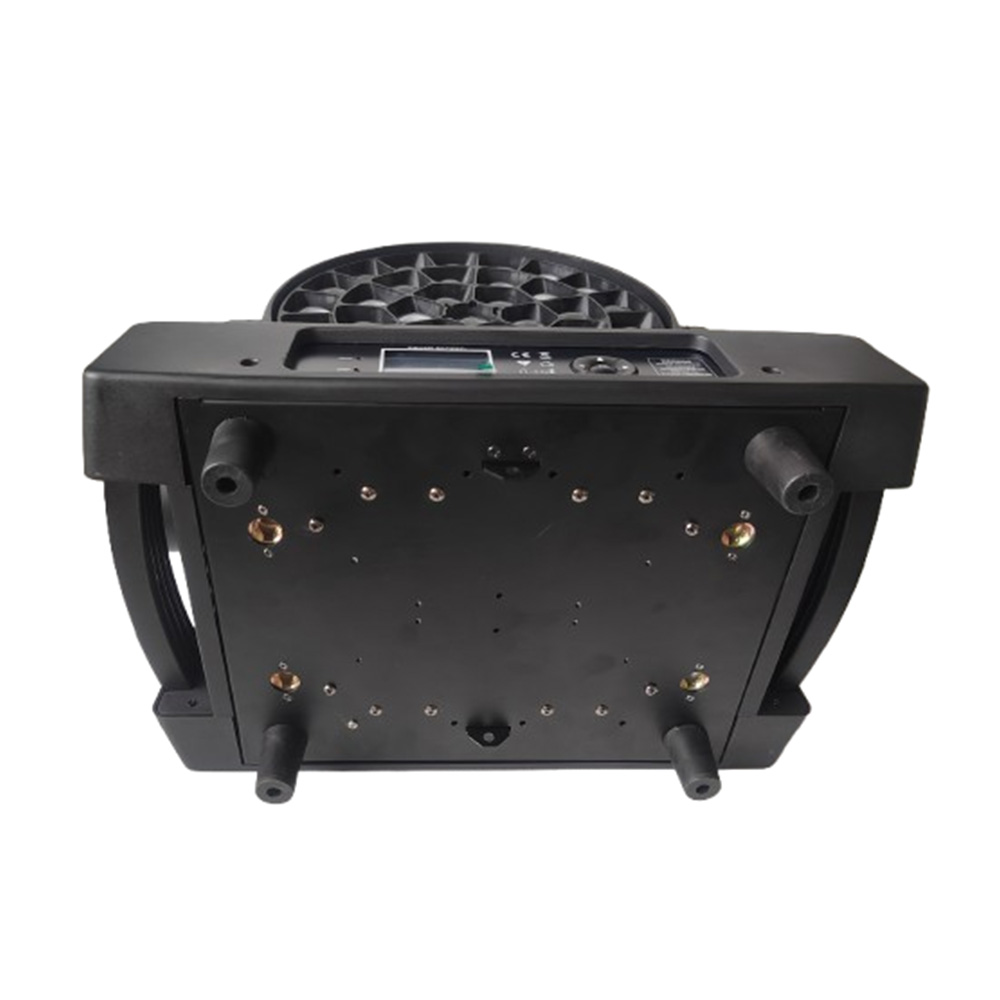

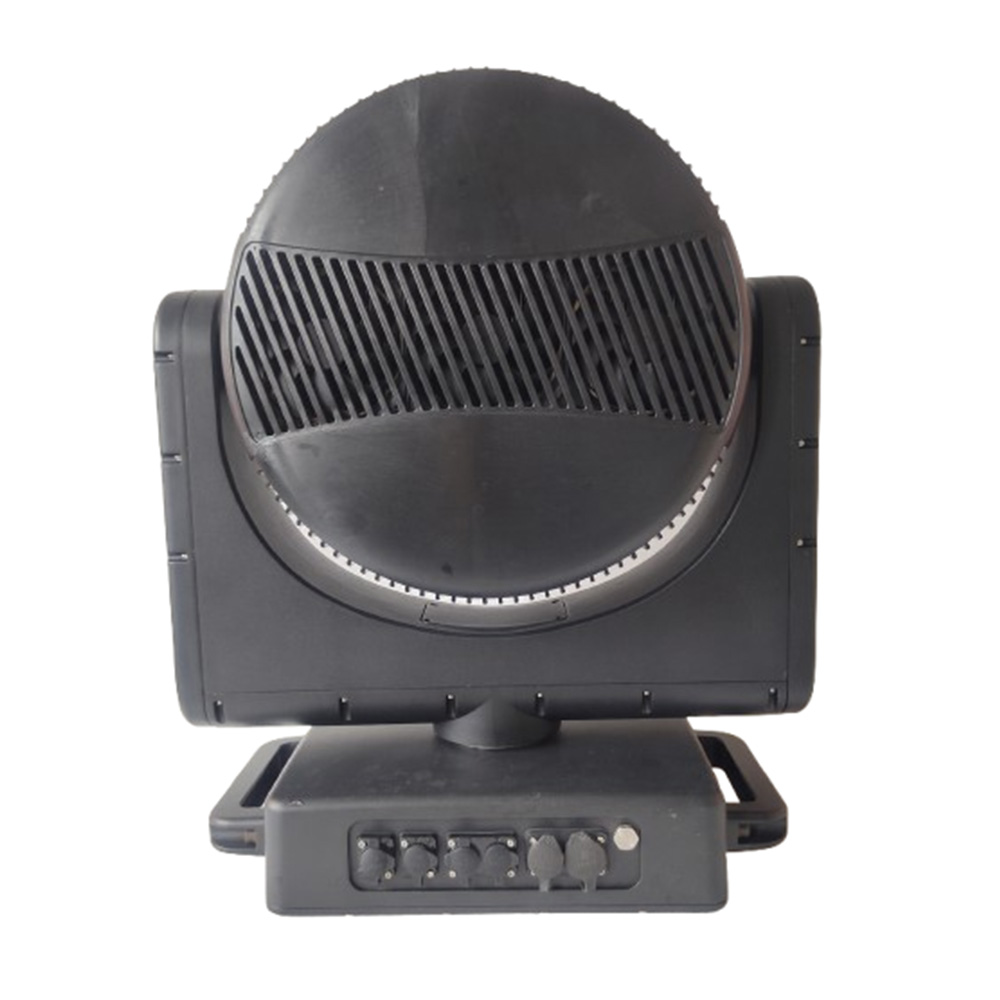

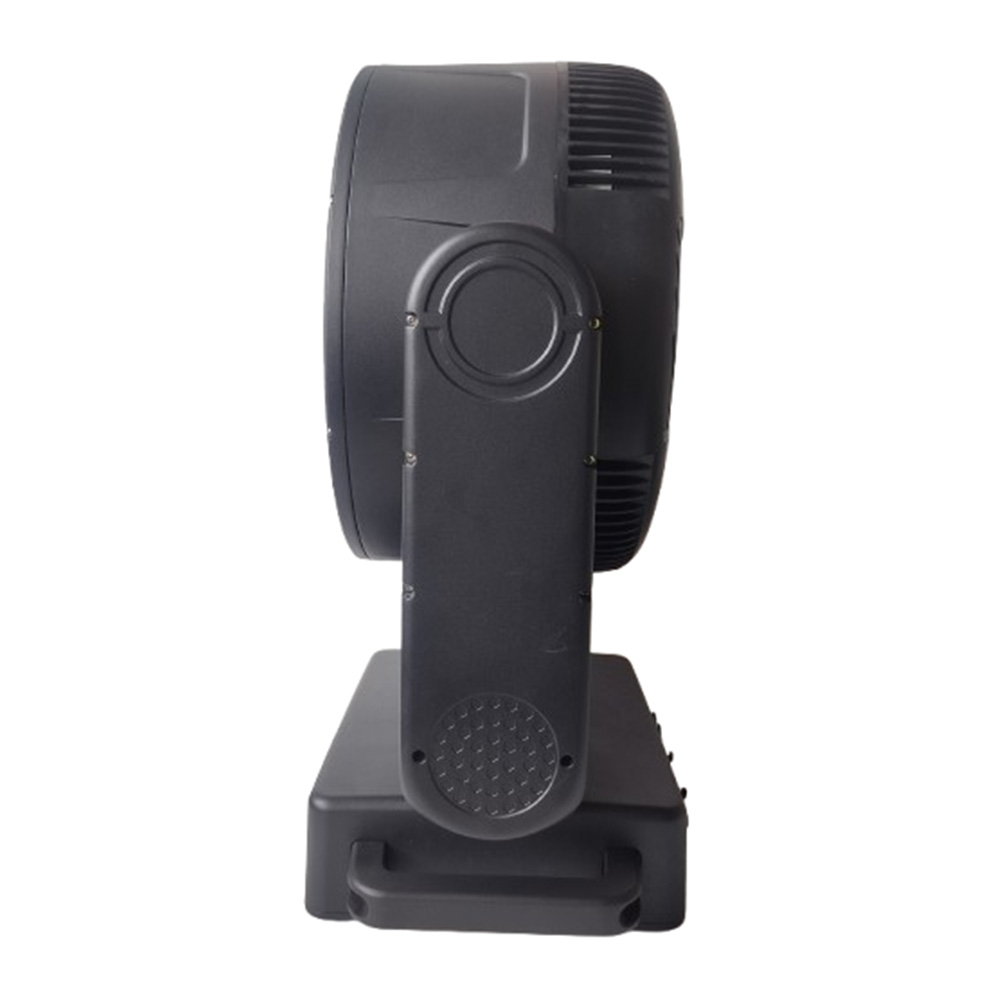

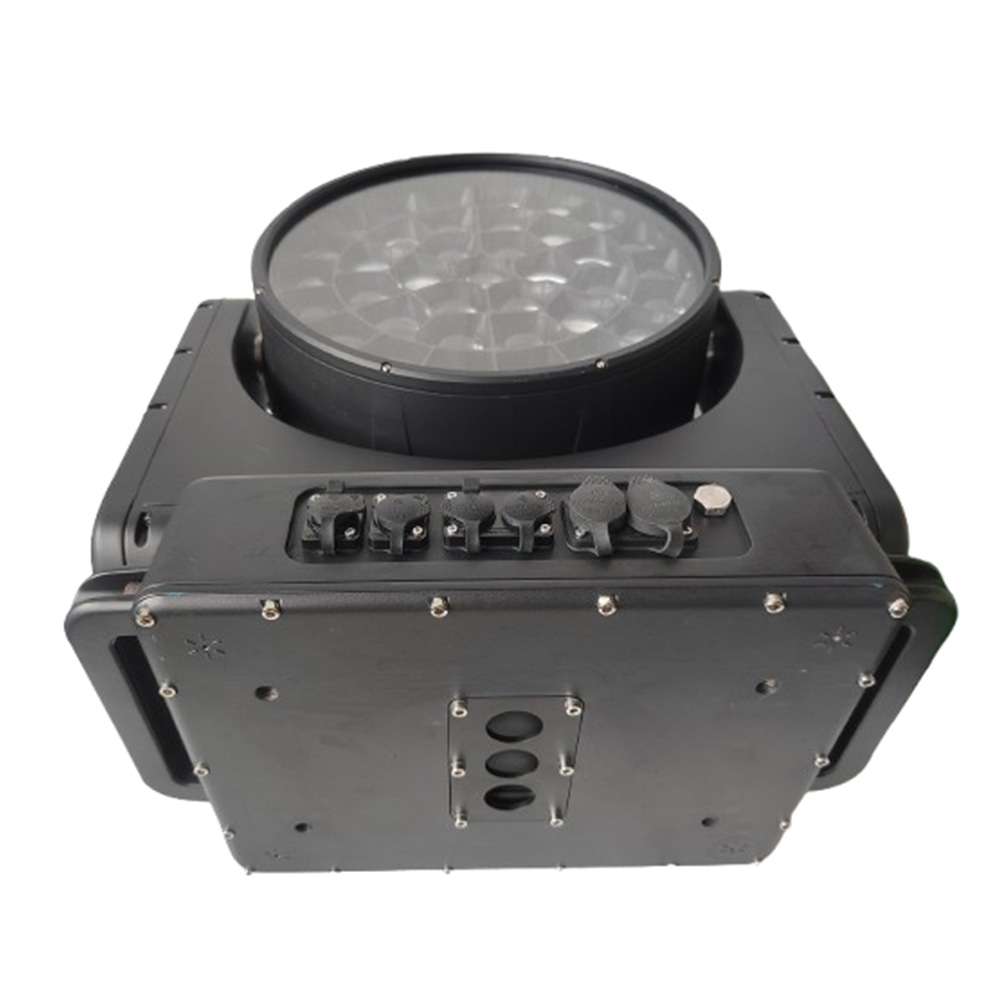

Details

Optional accessories

Features

◈ 100V-240V,50/60Hz
◈ 37x40w RGBW 4 IN 1 high power LEDs
◈ 21/22/35/36/111/148 DMX channel
◈ zoom angel from 7 to 35 °
◈ DMX512, master-slave and sound activated controllable and auto with built-in programs
◈ RGBW mixing
◈ 0-100% dimmer
◈ Strobeup to 25Hz,random and pulse strobe Pixel control and bee eye effect
◈ Current control system for LED protection with stable running
◈ LCD display and 5 button touch screen control panel
◈ Full intellectualized protective for high temperature and resistance to electronic circuit
◈ IP65 protection level
◈ Product Dimensions: 53×28×63cm, N.W：31.1kg

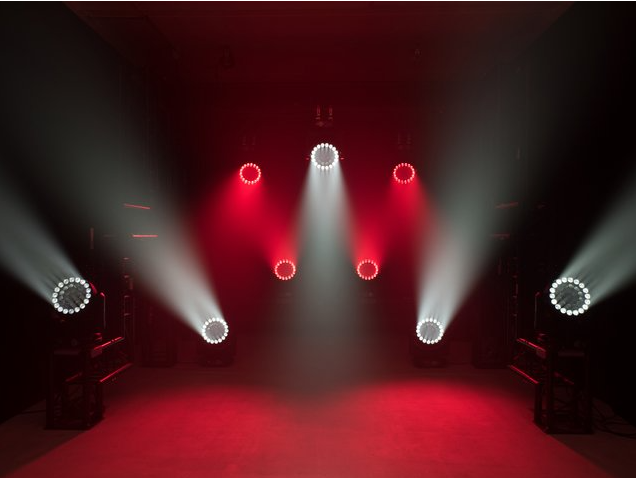

Application
