GuangZhou STS Lighting Equipment Co.,Ltd.

Product Information

Parameters

※ HOUSING

◈ Aluminum casting

※ Light Source System

◈ 400W LED Module (7800K High CCT)
◈ Color Wheels:
Wheel 1: 3 Colors + White (Bi-directional Rainbow)
Wheel 2: 5 Colors + White (Bi-directional Rainbow)
◈ Rotating Gobo Wheel: 4 Gobos + White Open
◈ CMY+CTO Mixing System (2700K-6500K Adjustable)
◈ Framing System: 4 Blades
4-Facet Rotating Prism (DMX-Speed/Direction Control)

※ Optical System

◈ 7 Rotating Gobos + White Open
◈ 4-Blade Framing System (Creates Custom Beam Shapes)
◈ 4°-50° Motorized Zoom (Linear Scaling)
◈ CRI ≥90
◈ 1-25Hz Ultra-fast Strobe (Random/Pulse Modes)

※ Control System

◈ DMX Channels: 28/32
◈ Modes: DMX, Master/Slave, Sound-Active, Auto
◈ Features:
   0-100% Linear Dimming
   Random/Pulse Strobe
   Electronic Focus

※ Movement System

◈ 540° Pan / 270° Tilt (16-bit Precision)
◈ Auto Reset & Correction

※ Cooling System

◈ Copper Heat Pipe + Dual Axial Fans
◈ Magnetic Levitation Smart Cooling (Overheat Protection/Real-time Temp Display)

※ SIZE/WEIGHT

◈ Length: 33cm

◈ Width: 25cm

◈ Height: 63cm

◈ Weight: 16.70kg

※ POWER

◈ 100-240V AC, 50/60Hz

◈ Power Consumption:500W

※ PACKAGE

◈ Packing: 2 in 1 / 4 in 1

◈ Package: Carton

Details

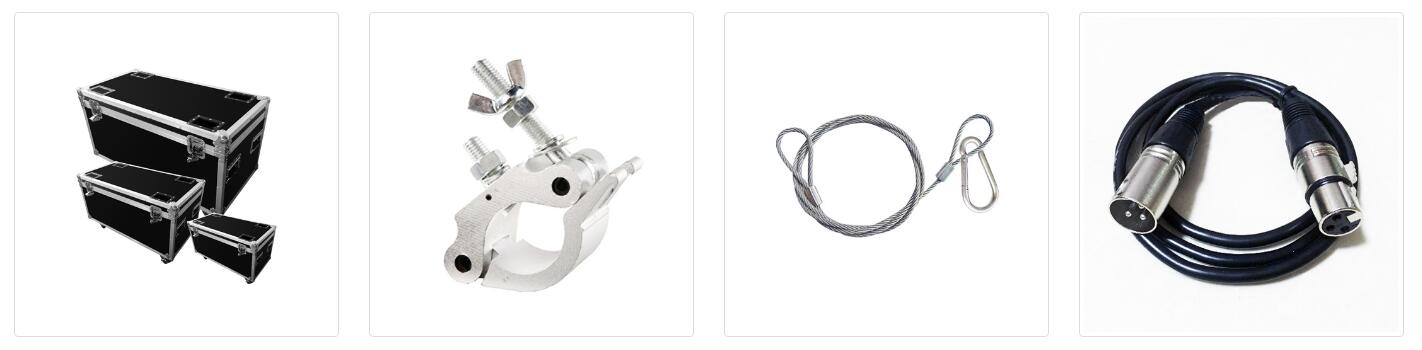

Optional accessories

Features

◈ 100~240V AC,50/60Hz
◈ 400W high brightness LED, LED bead lifespan: 20000 hours, display indicator ≥ 90
◈ 5 meters @ 4 °, magnification angle: 4 °~50 °
◈ 28/32 DMX channel
◈ Color palette with 1:3 colors and white light, capable of bi-directional rotating rainbow effect
◈ Color palette 2: 5 colors+white light, can rotate rainbow effect in both directions
◈ Rotating pattern disc: 4 rotating pattern pieces+white circle
◈ 1 set of CMYK+CTO color mixing system, adjustable color temperature (2700K-6500K)
◈ A cutting system consisting of 1 cutting disc and 4 cutting blades
◈ 4-prism, bidirectional rotation, speed and direction can be controlled by DMX
◈ 0-100% linear dimming, random flicker, pulse flicker
◈ 540 ° horizontal movement, 270 ° vertical movement
◈ DMX， Master/Slave, Voice Control/Self Drive
◈ Atomization sheet with a light transmittance greater than 90%
◈ Electronic focusing
◈ Product size: 33x25x63cm, net weight: 16.7 kg
◈ Air box: 1 pack 1/1 pack 2 optional
