Product Information

Parameters

※ HOUSING

◈ Environmental-friendly flame-retardant material

※ Electrical Specifications

◈ Power: 270W
◈ Voltage: AC 100-240V, 50/60Hz

※ Light Source

◈ 2x 60w white led

◈ 2x 6pcs 10w RGBW 4 in1 led

◈ 2x 24pcs 0.2W 3 in1 RGB led

※ Effects & Functions

◈ Channel Options: 16/26/31/49 CH
◈Rotating Effects

◈Rainbow Effect (speed adjustable)

◈Electronic Dimming

◈Strobe (speed adjustable)

◈Built-in Programs

◈Sound-Activated Mode via built-in mic (sensitivity adjustable)

※ Optical Performance

◈ Beam Angle: 14°
◈ DMX Control

◈ Stand-alone / Master-Slave Mode

※ Movement & Control

◈ Pan: 540° (16-bit)
◈ Tilt: 270° (16-bit)
◈ Photoelectric reset system
◈ XY inversion capability

※ SIZE/WEIGHT

◈ Length: 58.50cm

◈ Width: 12.00cm

◈ Height: 32.00cm

◈ Weight.: 8.55kg

◈ Gross Weight .: 10.50kg

◈ Packaged :67.00x39.00x30.00cm

※ Construction

◈ Material: Magnesium alloy casing
◈ IP Rating: IP20
◈ Cooling: Auto-speed thermal management

※

Details

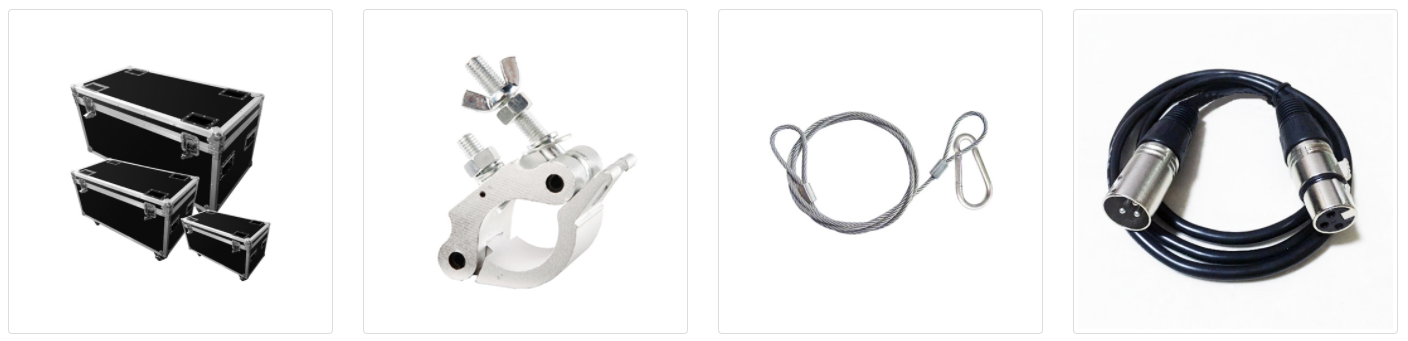

Optional accessories

Features

* AC100-240V,50/60Hz
* 2x 60w white led
* 2x 6pcs 10w RGBW 4 in1 led
* 2x 24pcs 0.2W 3 in1 RGB led
* 16/26/31/49 DMX channel in optional
* Effect Rotation
* Rainbow effect with adjustable speed
* Electronic dimmer
* Strobe effect with adjustable speed
* Internal programs
* Sound-control via built-in microphone; sensitivity adjustable
* Exact positioning via 16 bit PAN/TILT movement resolution
* Positioning within 540° PAN and 200° TILT
* DMX-controlled operation or stand-alone operation with Master/Slave function
* Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
* DMX control via every standard DMX controller
* Dimensions:67*39*40cm,N.W.:8.55kg
